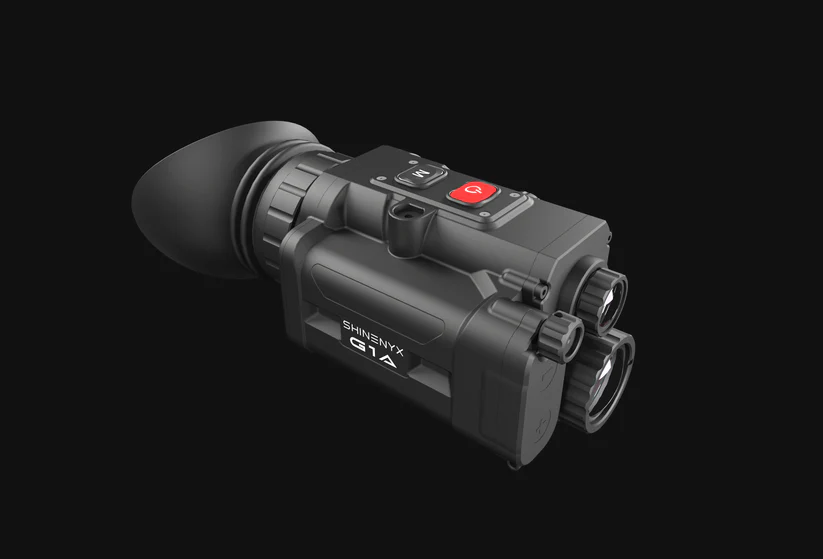

G1A 640X512 Thermal + Military Grade Nightvision Image Fusion Monocular/Goggle/Scope
Price range: $3,999.00 through $4,199.00
Description
Specification
| G1 A | ||||
|---|---|---|---|---|
| Dual-camera | Night Vision | Thermal | Fusion | |
| Image Sensor | Resolution | 1600×1200 | 640×480 | 1600×1200 |
| Detector Size | 1.7 inch | 0.6 inch | ||
| Imaging Mode | Black&White | White Hot | Colorful Fusion/Colorful Negative Fusion | |
| Recognition Enhancement | RTO(Outline Heat Target) | |||
| Frame Rate | 50Hz | |||
| Objective Lens | Focal Length | 16.5mm | 5.45mm | |
| Field of View | 60.4°x47.1° | 60.4°x47.1° | 60.4°x47.1° | |
| Focus Method | Manual Rotation | |||
| Viewfinder | 2.1inch, 1600×1200 LCD Screen | |||
| Detection Range | Hog Target | Up to 150 yards | ||
| Other Features | Electronic Compass | Available | ||
| Interface | USB-C | Power Supply/ Battery Charge/ Firmware Update | ||
| Operational Characteristics | Magnification | 1x/2x/4x | ||
| Power Supply | 2x 18650 batteries/USB-C Interface | |||
| Battery Life | Up to 6 hours | |||
| Ingress Protection | IPX5 | |||
| Operating Temperature | -20°F~+110°F | |||
| Weight | As Monocular 17ounces, As Goggle 18 ounces, As Scope 21ounces | |||
| Dimension | With Eyepiece Cover：177 x 74 x 68(mm) | |||
| Recoil Resistance | Maintain Zero After 7.62 x 51 NATO 1000 Shoots | |||
| G1A | |
|---|---|
| Dual-camera | Night Vision+Thermal |
| Resolution | 1600×1200/640×512 |
| Detector Size | 1.7 inch/0.6 inch |
| Imaging Mode | White Hot Thermal /Black&White Night Vision/Colorful Fusion/Colorful Negative Fusion |
| Recognition Enhancement | RTO(Outline Heat Target) |
| Frame Rate | 50Hz |
| Focal Length | 16.5mm/5.45mm |
| Field of View | 60.4°x47.1° |
| Focus Method | Manual Rotation |
| Viewfinder | 2.1inch, 1600×1200 LCD Screen |
| Detection Range(Hog Target) | Up to 150 yards |
| Electronic Compass | Available |
| Interface | USB-C(Power Supply/ Battery Charge/ Firmware Update) |
| Magnification | 1x/2x/4x |
| Power Supply | 2x 18650 Batteries/USB-C Interface |
| Battery Life | Up to 6 hours |
| Ingress Protection | IPX5 |
| Operating Temperature | -20°F~+110°F |
| Weight | As Monocular 17ounces, As Goggle 18 ounces, As Scope 21ounces |
| Dimension | With Eyepiece Cover：177 x 74 x 68(mm) |
| Recoil Resistance | Maintain Zero After 7.62 x 51 NATO 1000 Shoots |

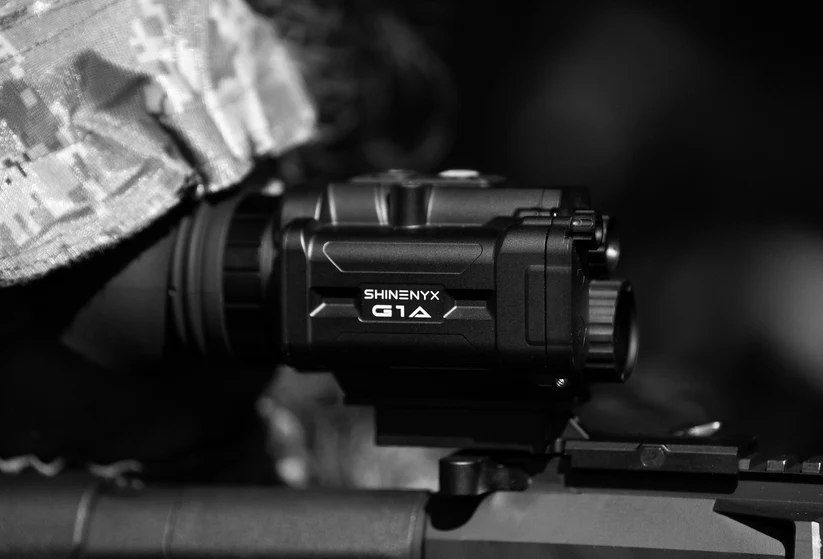

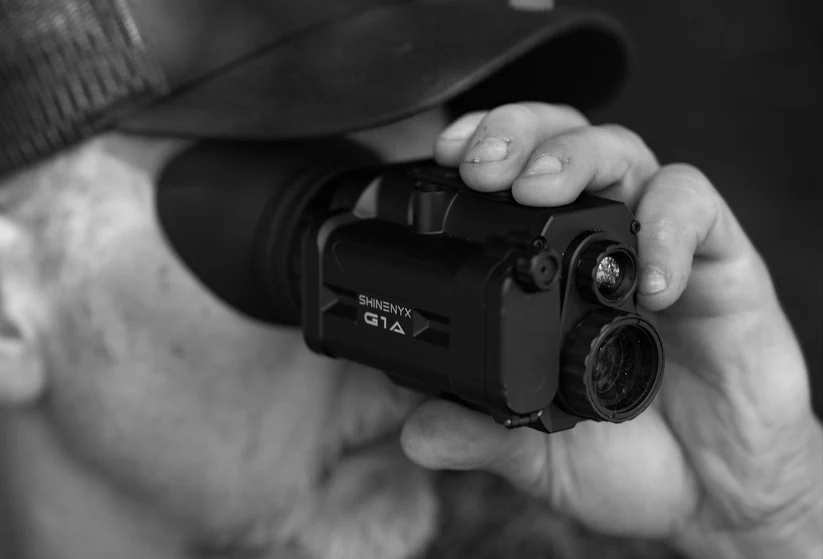

THE G1A MONOCULAR / GOGGLE
The Shinenyx G1A Thermal + Night Vision Fusion Monocular / Goggle is a cutting-edge tool for professionals seeking superior vision and detection in low light environments.
Its real-time Fused Image Technology (F.I.T.) seamlessly integrates thermal and night vision. Rapid Target Outline (RTO) function simplifies the user’s ability to lock onto targets with speed.
50Hz high frame rate and low latency design eliminates lag and ensures fluid movement tracking.

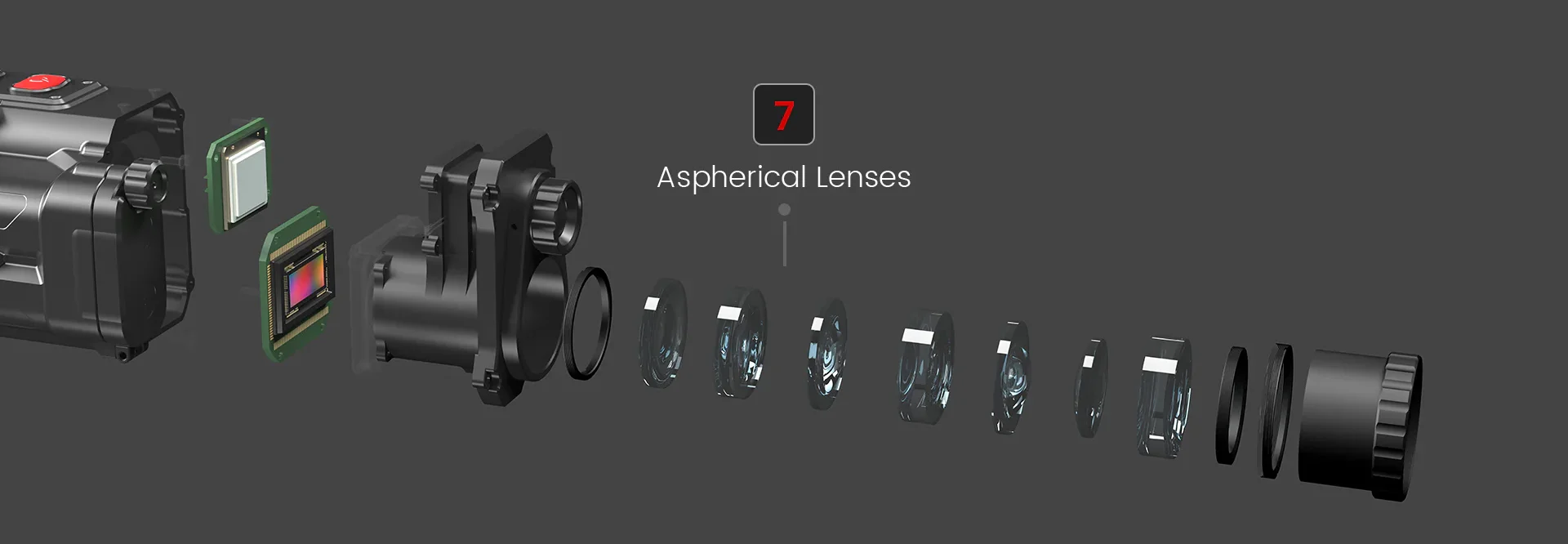

Proprietary Shinenyx E2E 7-Aspherical-lenses provide distortion-free, edge-to-edge clarity with wide 60.4 degree field of view.
2.1 inch High-resolution LCD and pancake eyepiece bring bright, clear and immersive visuals.
The G1A delivers unparalleled clarity and situational awareness in moonless nights without artificial illumination.
Compact and lightweight at just 16.76 ounces, it can also be used as fast aiming scope or goggle.
Designed for tactical operations, search and rescue, and security, the G1A is both durable and user-friendly, featuring an intuitive interface and long-lasting battery life.

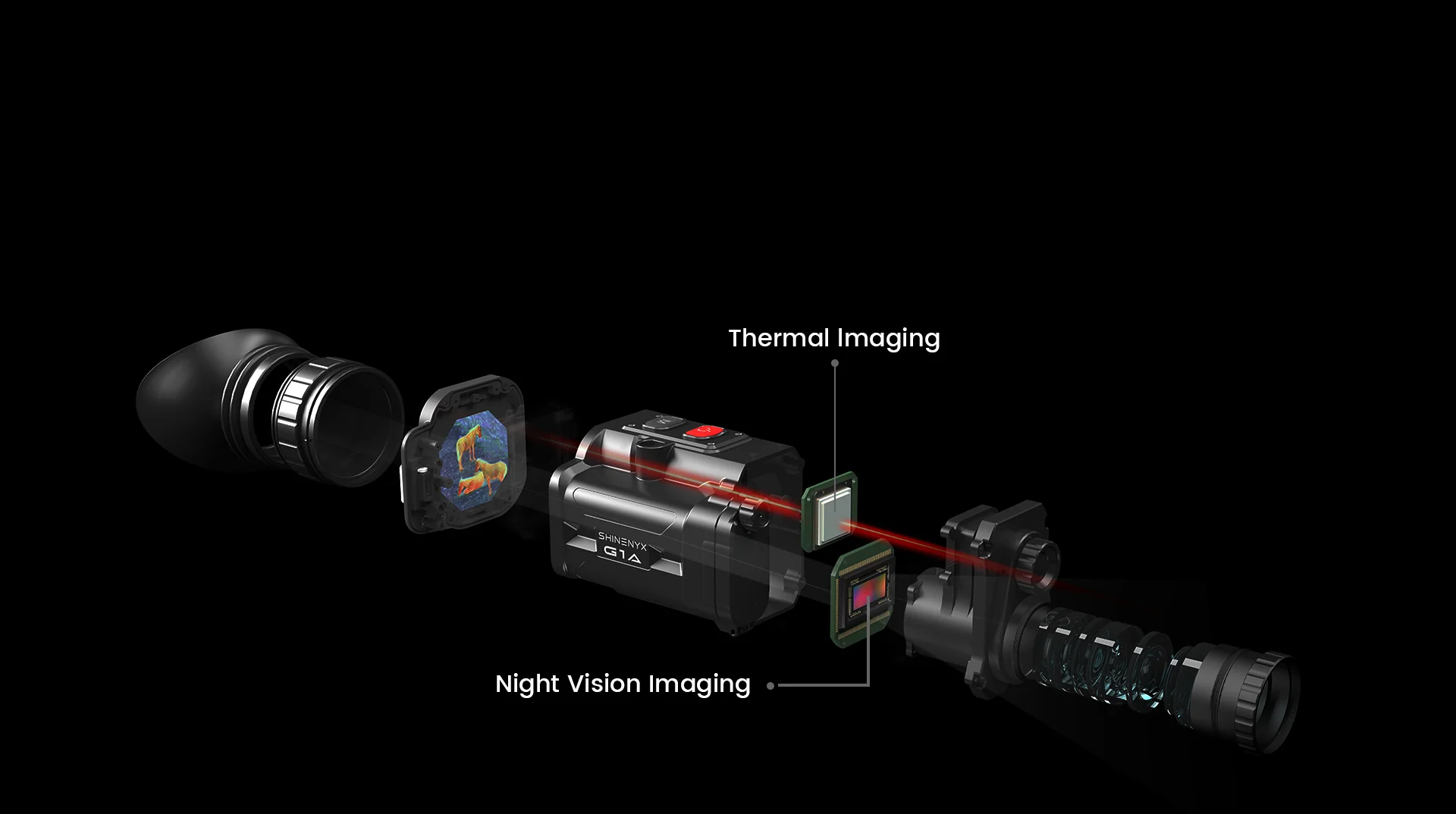

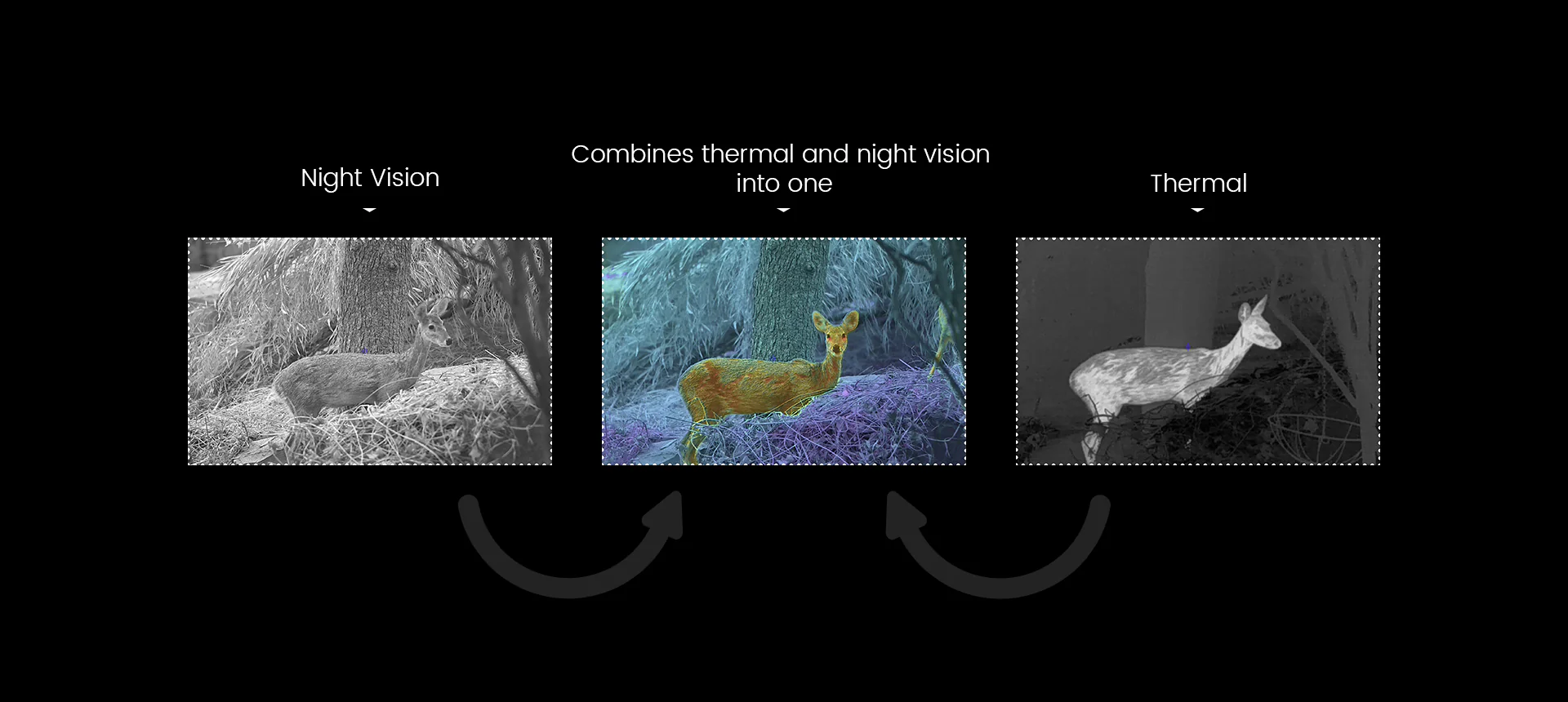

F.I.T.
Solving the Day-Night Dilemma
Seamlessly blend thermal imaging and night vision in real time into a single, perfect image, allowing you to switch between the two or merge them together.
G1A FIT
Read More
The Problem >>
Thermal imaging scopes are unmatched at night — but nearly useless in full sun, where heated rocks and ground overwhelm the display. Optical scopes work well in daylight but fail in darkness. Hunters are forced to carry two scopes or sacrifice performance.
The Shinenyx Solution: F.I.T(fused image technology) >>
Our fusion technology combines thermal and digital night vision in one scope. It adapts to any condition — bright sun, cloudy dusk, deep night — so you carry one rifle, one optic, and hunt with confidence around the clock.
Benifits
- Seamless transition between day and night
- No need to swap or carry extra optics
- Perfect for unpredictable weather and extended hunts
Watch More
RTO Mode
Locking on target has never been this easy!
name
Read More
Many hunters are familiar with the PVS 14 night vision monocular and the more advanced ENVG-B. A feature users consistently appreciate in these systems is the ability to outline target edges with a yellow contour, which improves rapid detection in complex backgrounds. Shinenyx’s implementation of this capability is known as Rapid Target Outline (RTO).
Visual Clarity and Comfort >>
In RTO mode, the image remains a high contrast monochrome display, similar to a black and white TV. The outline enhances target recognition without cluttering the field of view, enabling quick visual acquisition while minimizing eye fatigue during extended observation sessions.
Red Outline for Search – With a Pulse >>
Feedback from law enforcement professionals highlighted a limitation in continuous red-outline modes:
- A constant red contour can obscure portions of the target and reduce precise identification.
- While highly visible for detection at long range, it’s less optimal for positive target confirmation at closer distances.
To address this, Shinenyx developed Pulsed RTO Mode:
- The red outline appears for a brief interval to assist in rapid target detection.
- It then disappears for a few seconds, allowing unobstructed visual confirmation.
- This cycle repeats automatically, eliminating the need for manual mode switching during high stress scenarios.
Advantages in the Field
Faster Target Acquisition: Contours stand out against cluttered backgrounds such as brush, rocks, or urban environments.
Reduced Cognitive Load: Hunters and operators can detect and confirm without toggling controls.
Long-Term Comfort: Monochrome base image prevents visual fatigue during extended night operations.

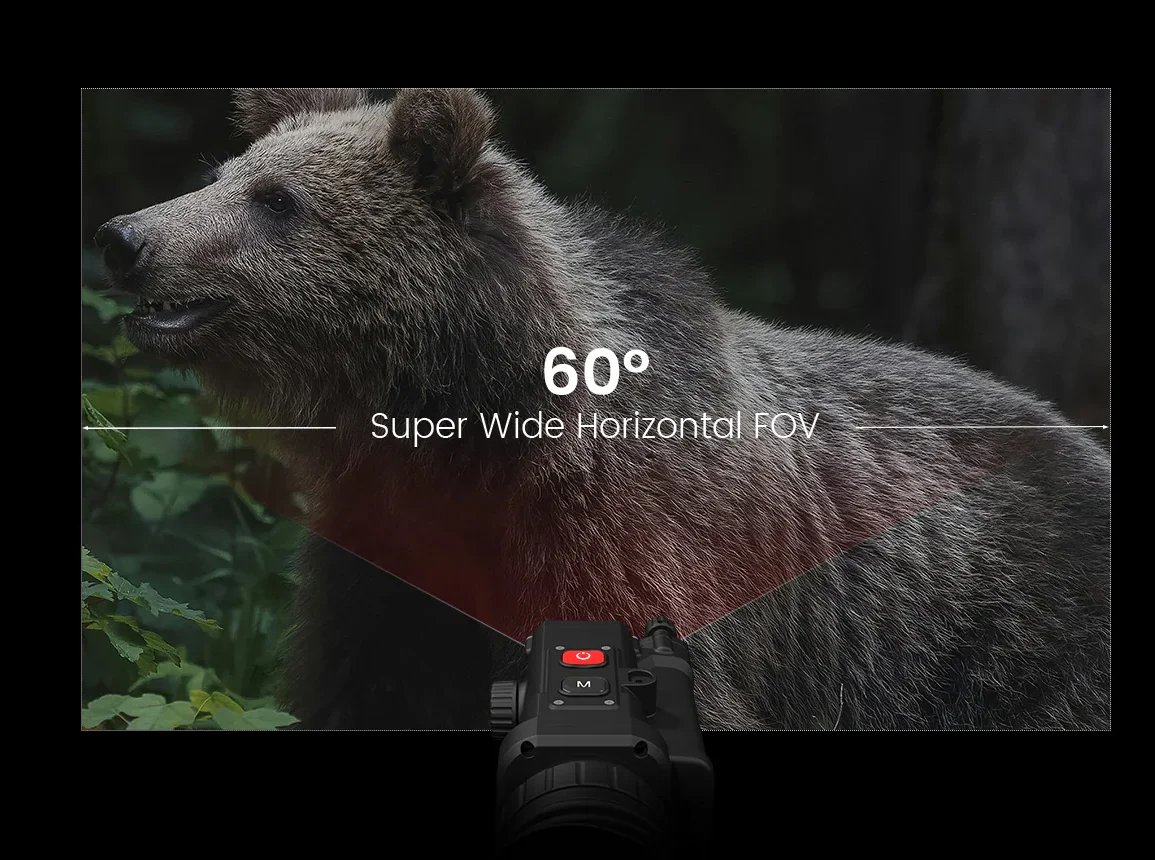

Apex Predator Vision
Gives You Ultimate Situational Awareness
Apex Predator Vision
Read More
Narrow FOV = Missed Opportunities >>
Traditional night vision goggles provide a tunnel-like view. Constantly tilting your head up and down to scan near and far is tiring and dangerous.
Shinenyx Ultra-Wide Optics >>
Our G1A scope delivers a panoramic view of your surroundings, allowing you to spot movement without constant head movement — critical in dense forests or when multiple animals appear.
Field-Proven Advantage
- As users and hunters, we have known the value of this wide field of view. While bear hunting, we were able to detect four black bears at once in Maine forests
- We’ve also used the options to scan open plains in South Africa for antelope and buffalo
- This wider FOV also improves safety and reduces fatigue during extended hunts
Watch More
Extra large depth of field
clarity from 3 yards to infinity
Unmatched Clarity
Provide Razor-sharp, Full-frame Clarity
Unmatched Clarity
Watch More

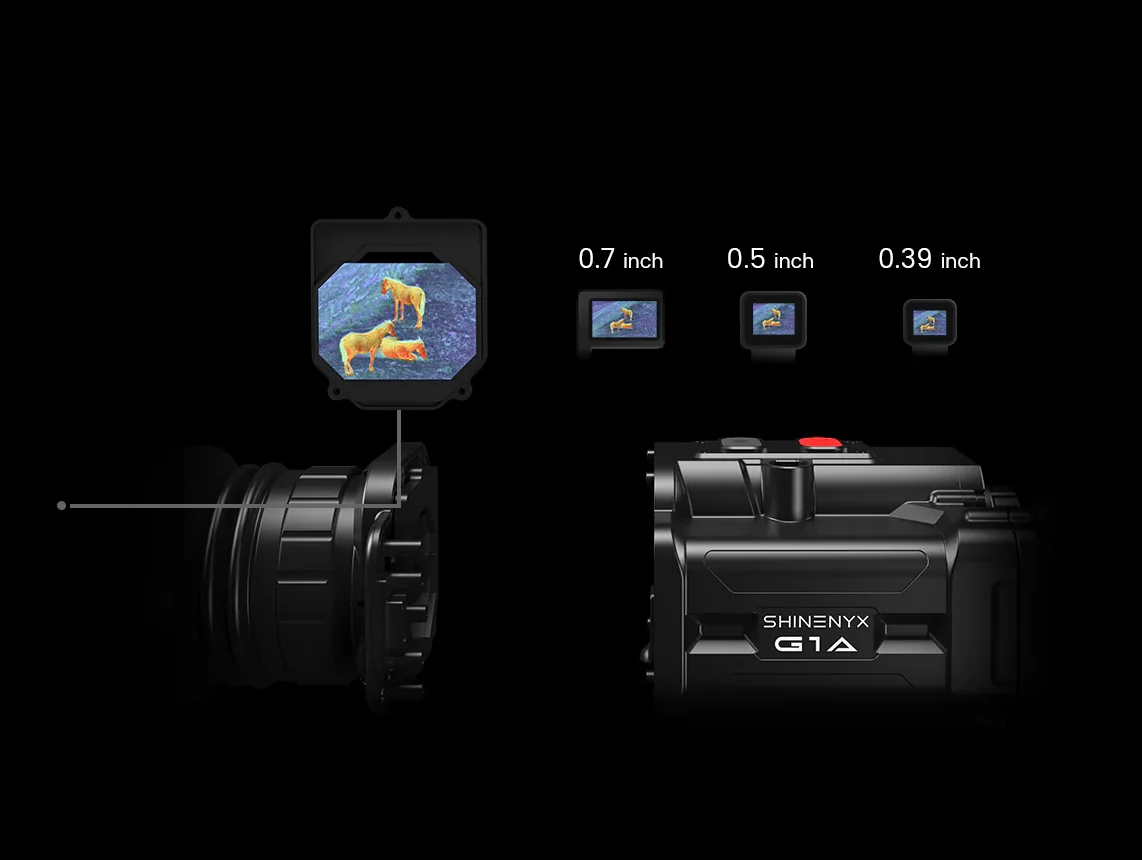

2.1 inch Screen
Offers VR Cinema Level Visual
10X bigger than competitors’
0.7/0.5/0.39 inch nail-sized gadgets
2.1 inch Screen
Watch More

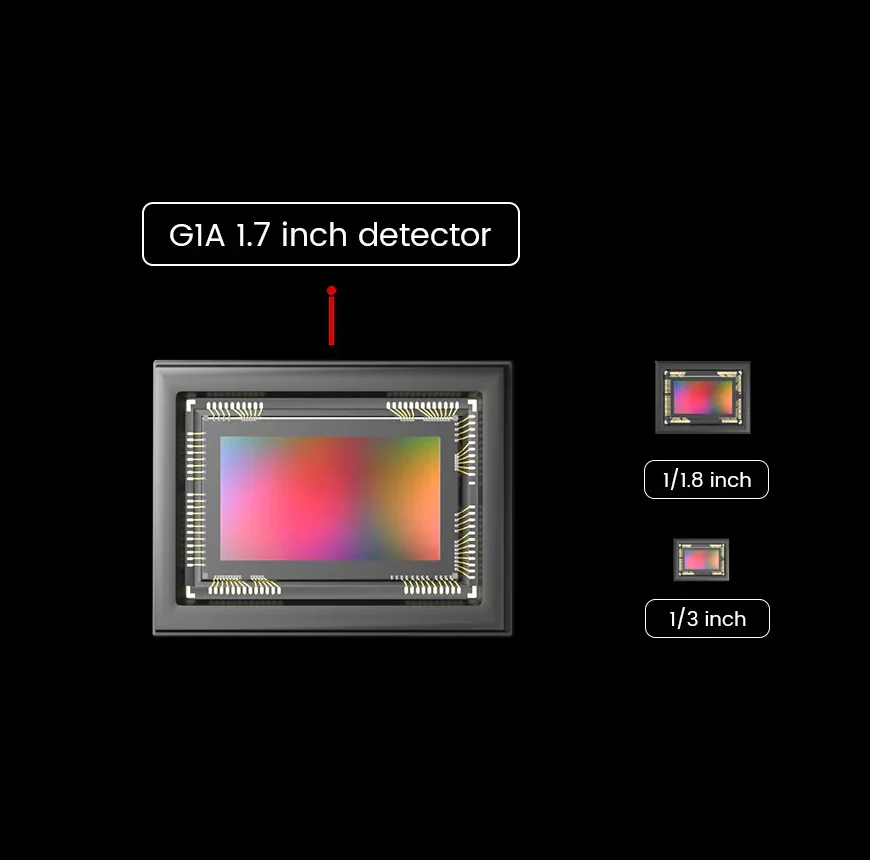

1.7 inch Detector
Super Night Vision
10x Bigger
10X Better Night Vision
than common Products on the market
Superior Night Vision
Watch More
Versatile
Only 21oz

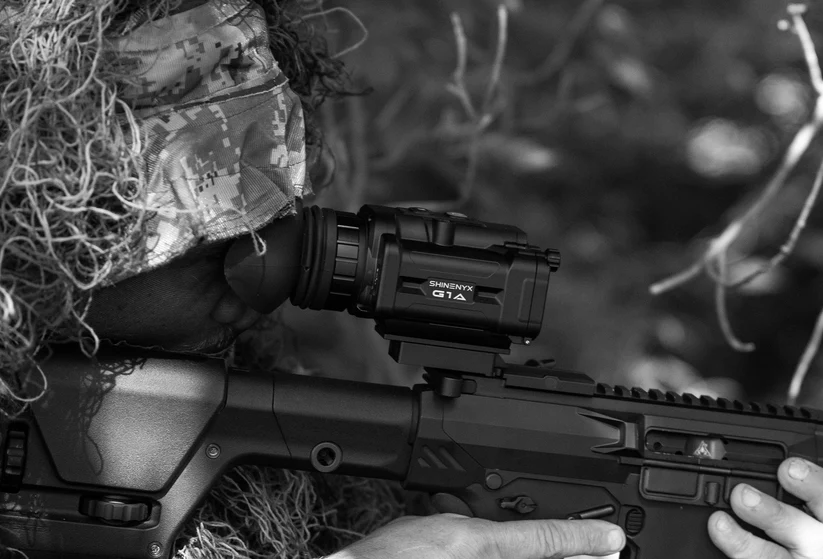

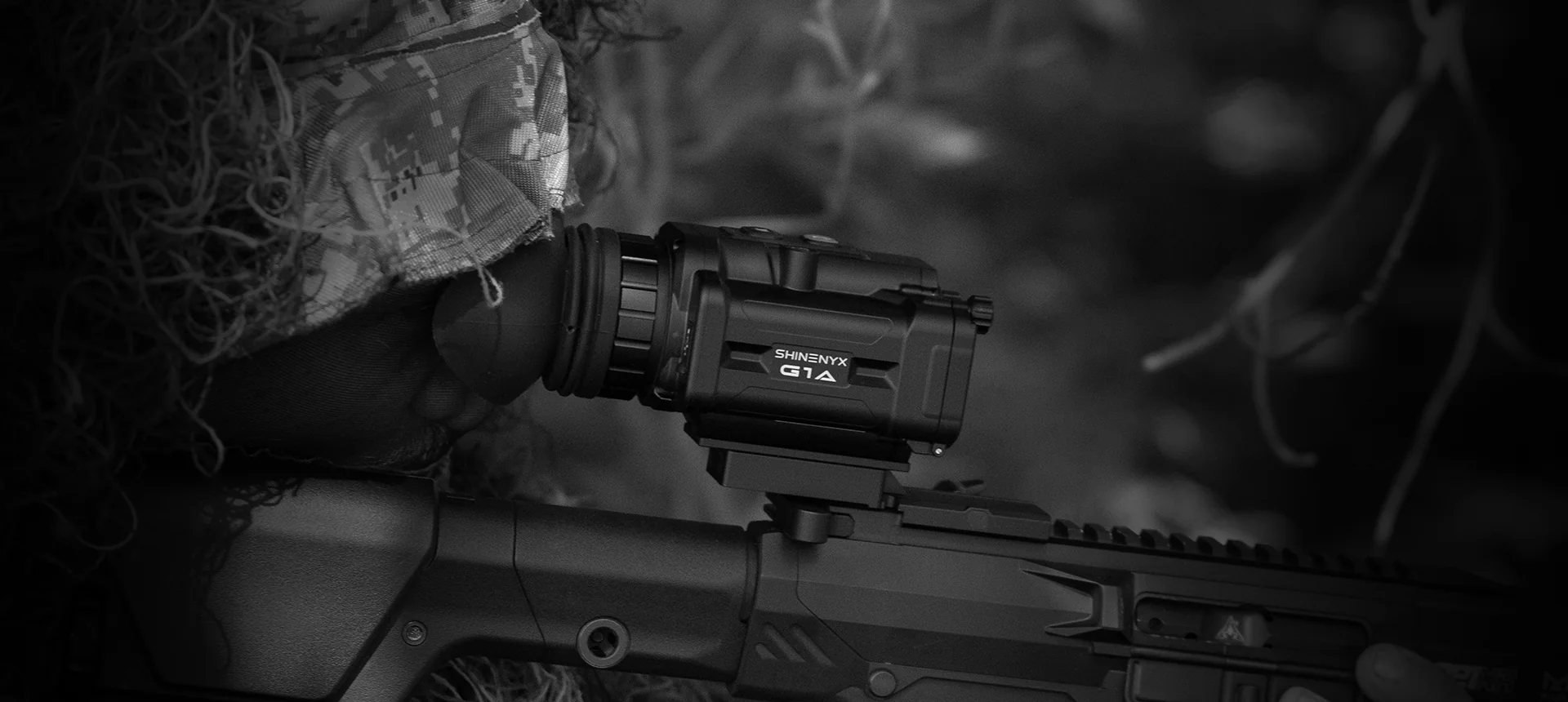

Rifle Mount
Versatile
Only 17oz

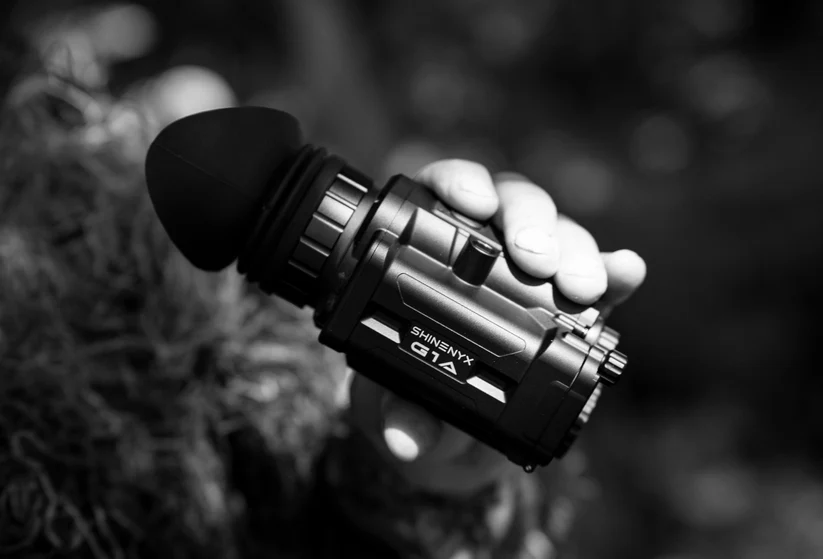

Hand Hold

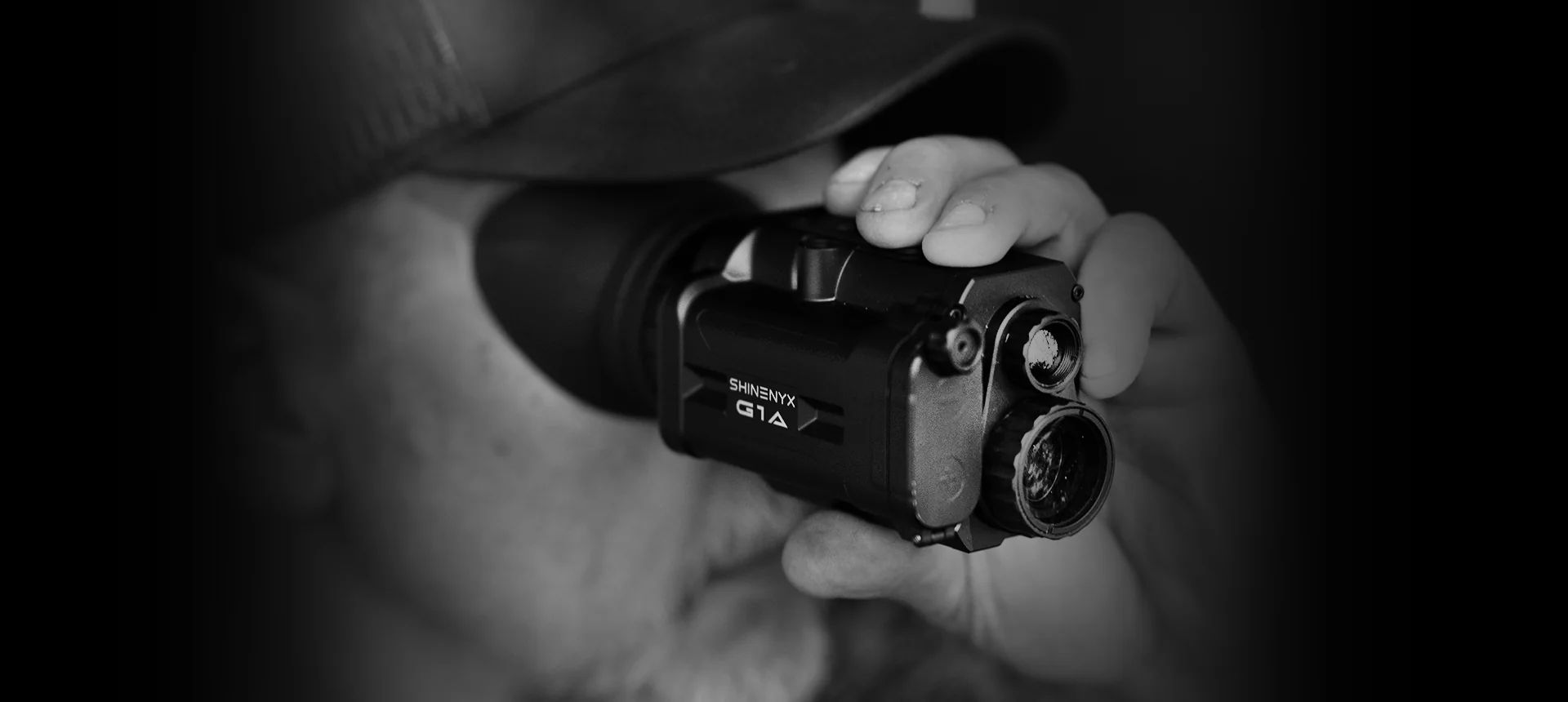

Versatile
Only 18oz

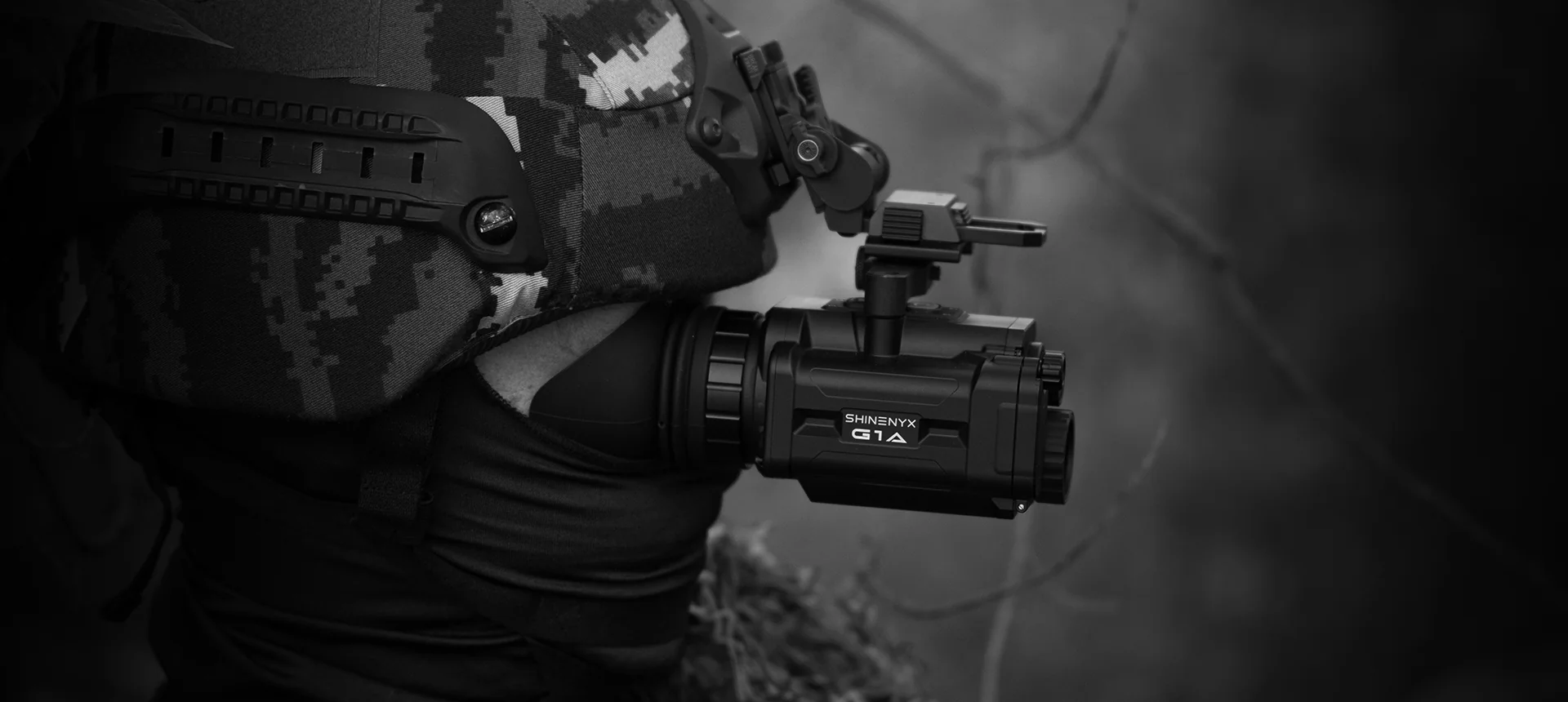

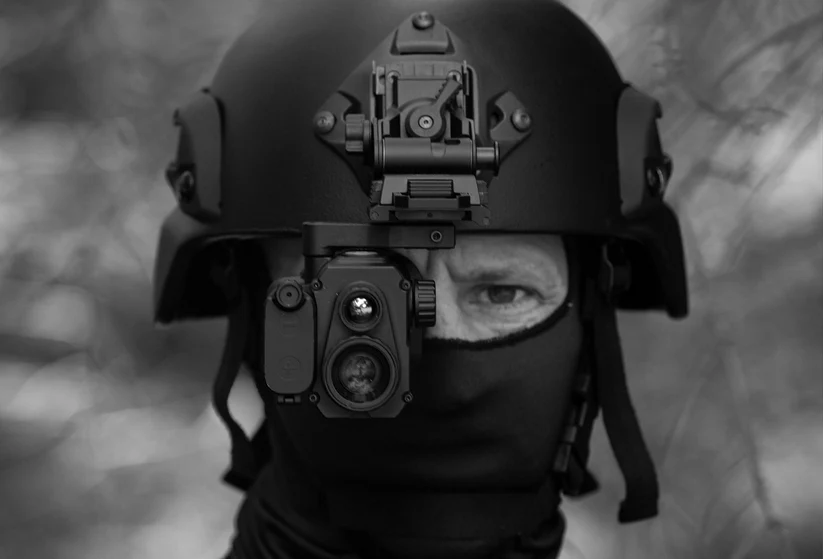

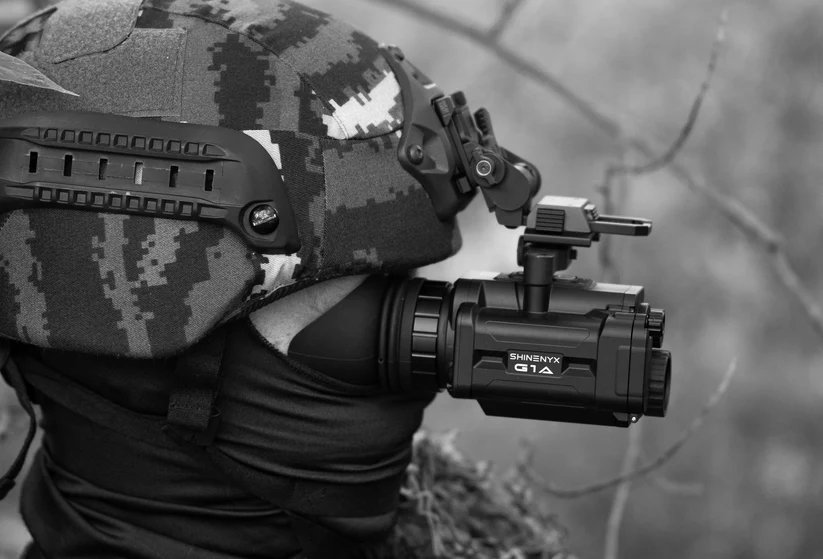

Helmet Mount

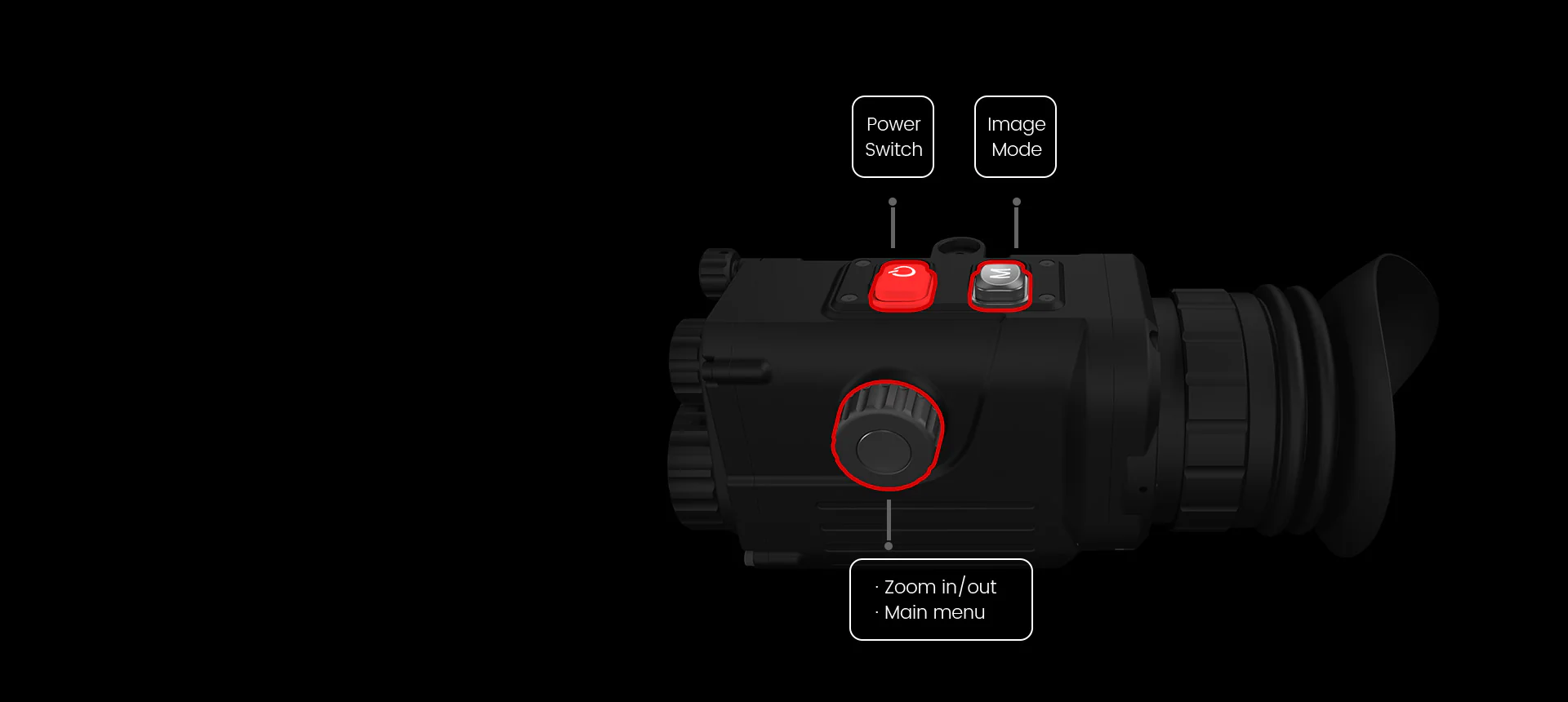

Simple to use
1 Button, 1 Smart Menu
Hunt Smarter, Not Harder.
name
Read More
The Problem with Over-Engineered Menus >>
High-tech optics often bury essential functions under layers of cryptic settings. Adjusting under stress is nearly impossible — especially with gloves or in the dark.
Shinenyx advantage >>
Use physical shortcuts and attitude control for the most-used features:
- No need to navigate deep menus
Simple When You Need It
Menus are shallow (one or two layers), intuitive, and designed to feel as familiar as a smartphone — so you stay focused on the hunt, not the hardware.
