M1Pro Image Fusion Monocular 640×512 Thermal + Military Grade NightVision + 800LRF
Original price was: $6,500.00.$6,499.00Current price is: $6,499.00.
Description
Specification
| M1 Pro | |||
| Dual-camera | Night Vision | Thermal | Fusion |
| Detector Resolution | 1920×1200 | 640×512 | 1920×1200 |
| Detector Size | 1.7 inch | 0.6 inch | |
| Imaging Mode | Black&White | White Hot | Colorful Fusion/Colorful Negative Fusion |
| Lens Focus Length | 35mm | 13.5mm | |
| Field of View | 37° x 23° | 31° x 23° | |
| Focus Mehod | Manual Rotation | ||
| Recognition Enhancement | RTO(Outline Heat Target) | ||
| Frame Rate | 25Hz | ||
| Viewfinder | 2.1inch, 1600×1200 LCD | ||
| Glasses | 0.7 inch, 1920×1200 OLED | ||
| Field of View through eye piece | 31° x 23° | ||
| Field of View through Glasses | 37° x 23° | ||
| Magnification through eye piece | 2X / 4X / 8 X | ||
| Magnification through Glasses | 1X / 2X / 4X | ||
| Detect Hog Target | Up to 400 yards | ||
| Recognize Hog Target | Up to 250 yards | ||
| Ranging Range | Up to 800 yards | ||
| Build-in Storage | 128G(about 15h) | ||
| Recording Resolution | 1920*1200@25fps | ||
| Electronic Compass | Indicates Direction and Angle of Pitch | ||
| IR illuminator | Up to 100 yards, recommended for in cave or indoor at night, not outdoor open area | ||
| USB-C |
USB-C(Video&Photo Copy/Power Supply/Battery Charge/Firmware Upgrade/Live Video Output) |
||
| Power Supply | 21700 Batteries/USB-C Interface | ||
| Battery Life | Up to 6 hours | ||
| Battery Life with glassess | Up to 4 hours | ||
| Operating Temperature | -20°F~+110°F | ||
| Ingress Protection | IPX6 | ||
| Weight | 18.7 ounces(With Batteries) | ||
| Dimension | Exclude Eyepiece Cover:143 x 74 x 70mm | ||
| M1 Pro | |||
| Dual-camera | Night Vision | Thermal | Fusion |
| Detector Resolution | 1920×1200 | 640×512 | 1920×1200 |
| Detector Size | 1.7 inch | 0.6 inch | |
| Imaging Mode | Black&White | White Hot | Colorful Fusion/Colorful Negative Fusion |
| Lens Focus Length | 35mm | 13.5mm | |
| Field of View | 37° x 23° | 31° x 23° | |
| Focus Mehod | Manual Rotation | ||
| Recognition Enhancement | RTO(Outline Heat Target) | ||
| Frame Rate | 25Hz | ||
| Viewfinder | 2.1inch, 1600×1200 LCD | ||
| Glasses | 0.7 inch, 1920×1200 OLED | ||
| Field of View through eye piece | 31° x 23° | ||
| Field of View through Glasses | 37° x 23° | ||
| Magnification through eye piece | 2X / 4X / 8 X | ||
| Magnification through Glasses | 1X / 2X / 4X | ||
| Detect Hog Target | Up to 400 yards | ||
| Recognize Hog Target | Up to 250 yards | ||
| Ranging Range | Up to 800 yards | ||
| Build-in Storage | 128G(about 15h) | ||
| Recording Resolution | 1920*1200@25fps | ||
| Electronic Compass | Indicates Direction and Angle of Pitch | ||
| IR illuminator | Up to 100 yards, recommended for in cave or indoor at night, not outdoor open area | ||
| USB-C |
USB-C(Video&Photo Copy/Power Supply/Battery Charge/Firmware Upgrade/Live Video Output) |
||
| Power Supply | 21700 Batteries/USB-C Interface | ||
| Battery Life | Up to 6 hours | ||
| Battery Life with glassess | Up to 4 hours | ||
| Operating Temperature | -20°F~+110°F | ||
| Ingress Protection | IPX6 | ||
| Weight | 18.7 ounces(With Batteries) | ||
| Dimension | Exclude Eyepiece Cover:143 x 74 x 70mm | ||
The Shinenyx M1 Pro is a next‑generation thermal and night vision monocular engineered for serious professionals and demanding enthusiasts. Powered by Fused Image Technology, the M1 Pro delivers four advanced viewing modes—Black and White night vision, White hot Thermal, Color Fusion, and Color Negative Fusion for unmatched situational awareness.Built for versatility, the M1 Pro can be used as a handheld monocular, weapon‑mounted scope, or integrated with the new Shinenyx Night Ops Glasses. A built‑in laser rangefinder, IR illuminator for complete darkness, onboard video and audio recording, and removable rechargeable batteries make this optic as practical as it is powerful.With 2/4/8x magnification, a generous 2.1 inch display, 640 thermal detector and military grade NV performance, the M1 Pro ensures no detail goes unnoticed. Its proprietary E2E Aspherical Lenses deliver distortion‑free edge‑to‑edge clarity, while the exclusive Rapid Target Outline (RTO) technology highlights heat signatures with a red outline—giving you instant, precise target acquisition in any environment.For extended operations, pair the M1 Pro with Shinenyx smart sync Glasses. The monocular mounts directly to a helmet and connects to the glasses via the included USB‑C to USB‑C cable, enabling comfortable, hands‑free surveillance or long‑duration hunts.The M1 Pro isn’t just another optic—it’s a complete thermal + night vision solution built for those who demand performance, reliability, and adaptability.

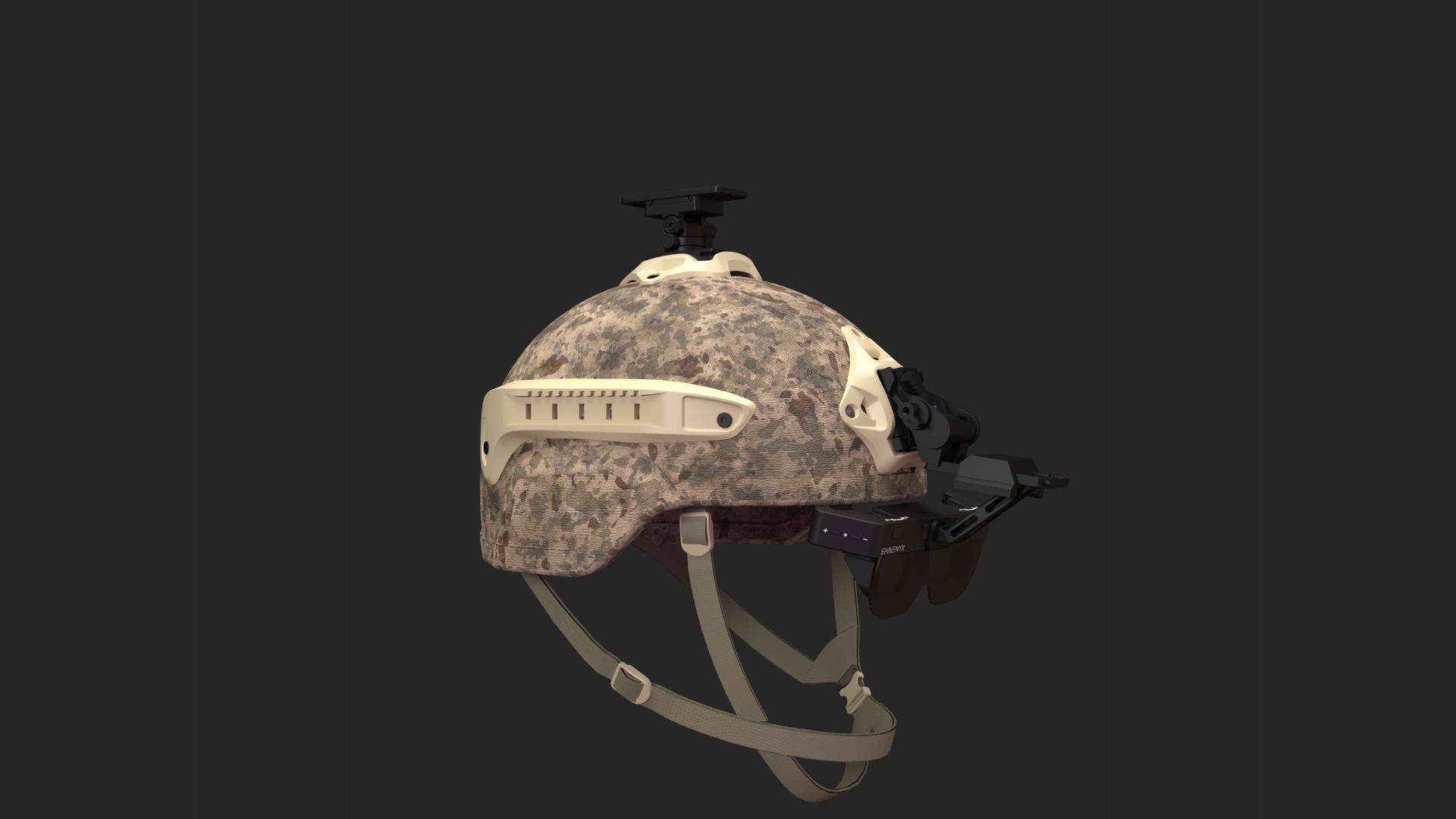

Shinenyx Smart Sync (SSS) Technology
Seamlessly connecting Shinenyx M1 Pro with smart glasses.

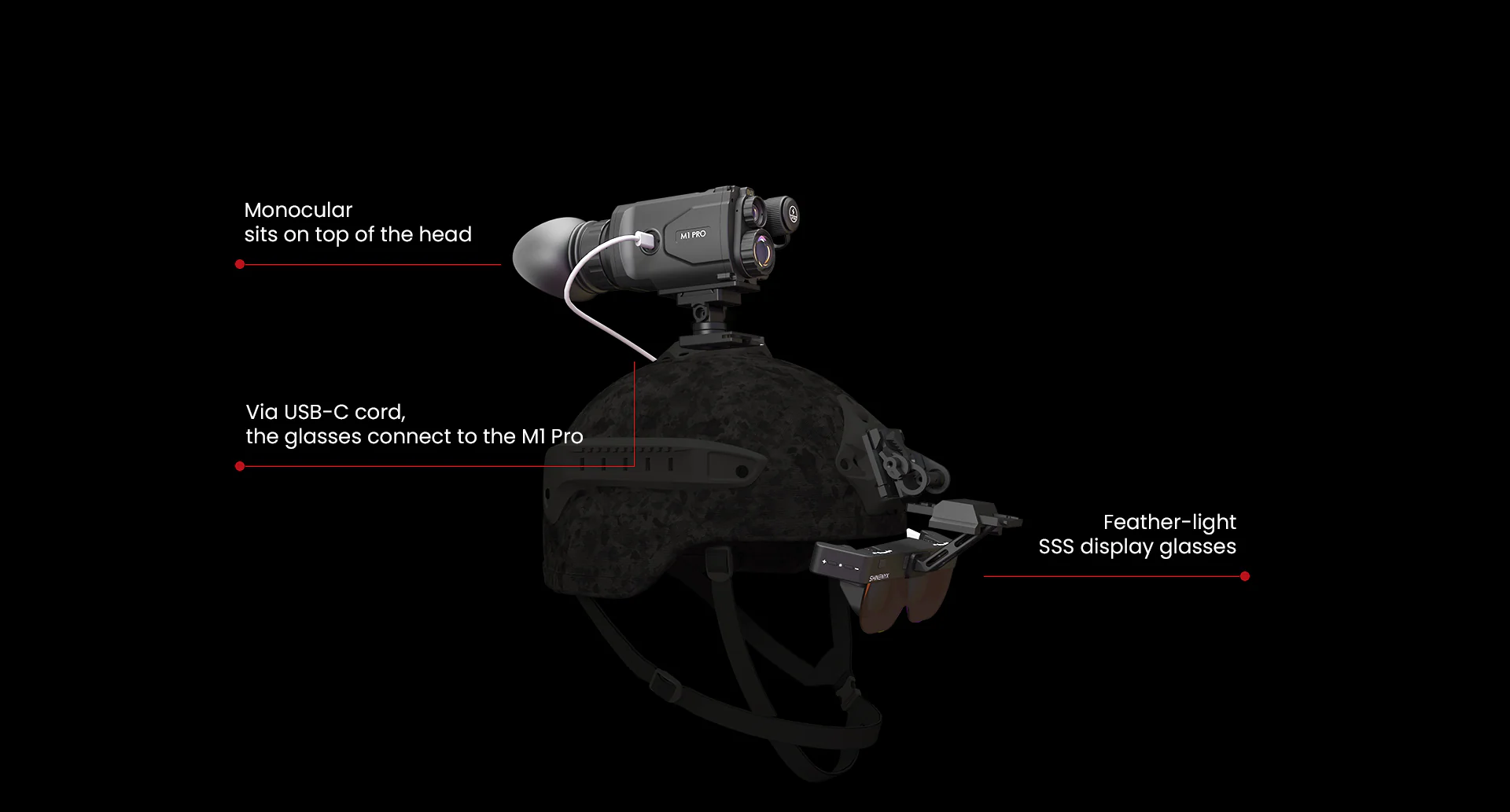

Freedom Through Separation
SSS Technology separates the imaging unit from the display unit, placing each where it performs
best. The M1 Pro handles image capture, while lightweight glasses provide the display—delivering
comfort, balance, and truly hands-free operation.
SSS re-engineers the system into modular components
Watch More
Transparent, Dual-World Vision
The display in SSS glasses is not just stereoscopic—it’s transparent. Hunters can see both the
monocular thermal DNV (Digital Night Vision) image and the real world simultaneously,
eliminating the limitations of traditional optics.
Proven in the Field

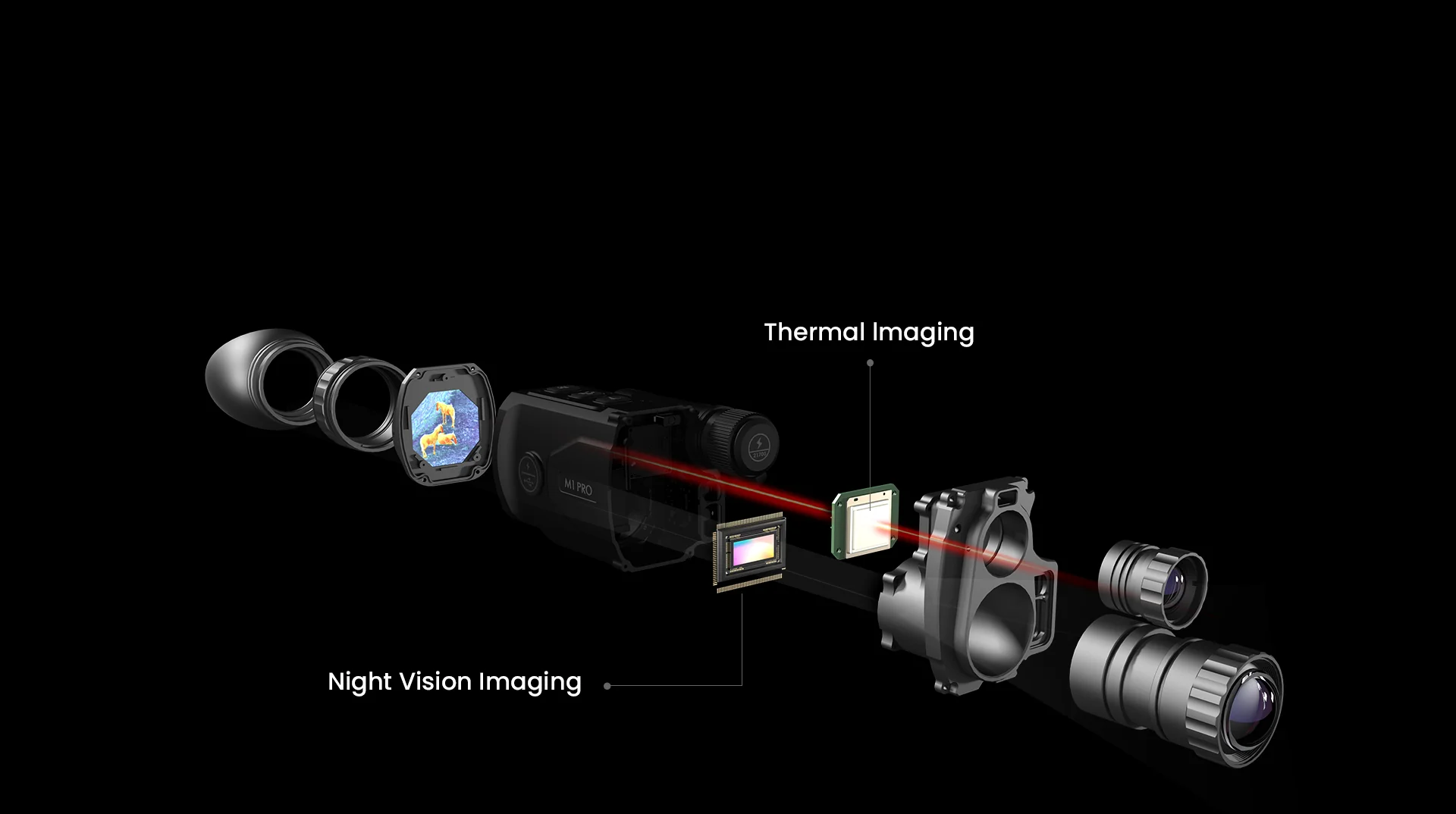

F.I.T.

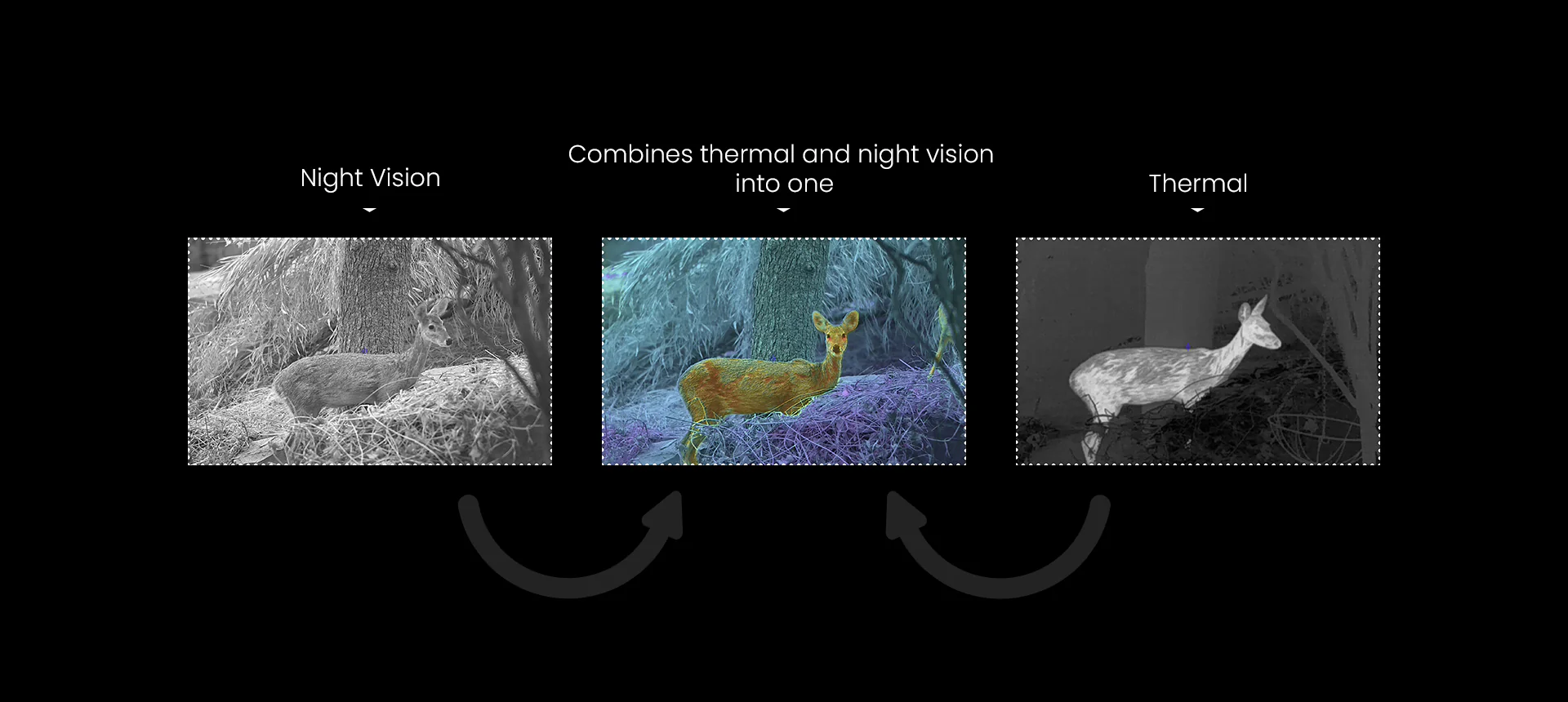

Solving the Day-Night Dilemma
Seamlessly blend thermal imaging and night vision in real time into a single, perfect image,
allowing you to switch between the two or merge them together.
F.I.T.
Read More
The Problem >>
Thermal imaging scopes are unmatched at night — but nearly useless in full
sun, where heated rocks and ground overwhelm the display. Optical scopes work well in
daylight but fail in darkness. Hunters are forced to carry two scopes or sacrifice
performance.
sun, where heated rocks and ground overwhelm the display. Optical scopes work well in
daylight but fail in darkness. Hunters are forced to carry two scopes or sacrifice
performance.
The Shinenyx Solution: F.I.T(fused image technology) >>
Our fusion technology combines thermal and digital night vision in
one scope. It adapts to any condition — bright sun, cloudy dusk, deep night — so you carry
one rifle, one optic, and hunt with confidence around the clock.
one scope. It adapts to any condition — bright sun, cloudy dusk, deep night — so you carry
one rifle, one optic, and hunt with confidence around the clock.
Benifits
- Seamless transition between day and night
- No need to swap or carry extra optics
- Perfect for unpredictable weather and extended hunts
Watch More
RTO Mode
Locking on target has never been this easy!
name
Read More
Many hunters are familiar with the PVS 14 night vision monocular and the more
advanced ENVG-B. A feature users consistently appreciate in these systems is the ability to
outline target edges with a yellow contour, which improves rapid detection in complex
backgrounds. Shinenyx’s implementation of this capability is known as Rapid Target Outline
(RTO).
advanced ENVG-B. A feature users consistently appreciate in these systems is the ability to
outline target edges with a yellow contour, which improves rapid detection in complex
backgrounds. Shinenyx’s implementation of this capability is known as Rapid Target Outline
(RTO).
Visual Clarity and Comfort >>
In RTO mode, the image remains a high contrast monochrome display,
similar to a black and white TV. The outline enhances target recognition without cluttering
the field of view, enabling quick visual acquisition while minimizing eye fatigue during
extended observation sessions.
similar to a black and white TV. The outline enhances target recognition without cluttering
the field of view, enabling quick visual acquisition while minimizing eye fatigue during
extended observation sessions.
Red Outline for Search – With a Pulse >>
Feedback from law enforcement professionals highlighted a limitation
in continuous red-outline modes:
in continuous red-outline modes:
- A constant red contour can obscure portions of the target and reduce precise
identification. - While highly visible for detection at long range, it’s less optimal for positive
target confirmation at closer distances.
To address this, Shinenyx developed Pulsed RTO Mode:
- The red outline appears for a brief interval to assist in rapid target
detection. - It then disappears for a few seconds, allowing unobstructed visual
confirmation. - This cycle repeats automatically, eliminating the need for manual mode switching
during high stress scenarios.
Advantages in the Field
Faster Target Acquisition: Contours stand out against cluttered
backgrounds such as brush, rocks, or urban environments.
backgrounds such as brush, rocks, or urban environments.
Reduced Cognitive Load: Hunters and operators can detect and
confirm without toggling controls.
confirm without toggling controls.
Long-Term Comfort: Monochrome base image prevents visual fatigue
during extended night operations.
during extended night operations.
2.1 inch Screen
Offers VR Cinema Level Visual
10X bigger than competitors’
0.7/0.5/0.39 inch nail-sized gadgets
2.1 inch Screen
Watch More
1.7 inch Detector
Super Night Vision
10x Bigger
10X Better Night Vision
than common Products on the market
1.7 inch Detector
Versatile
Only 21oz

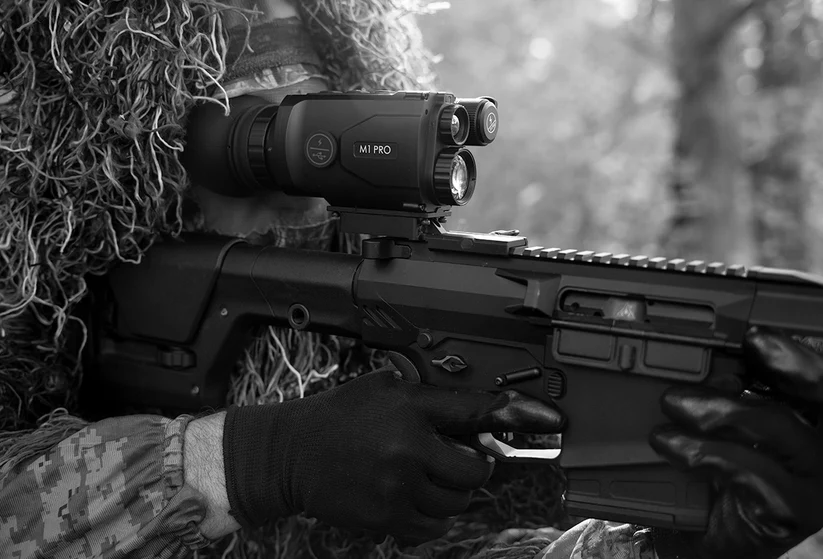

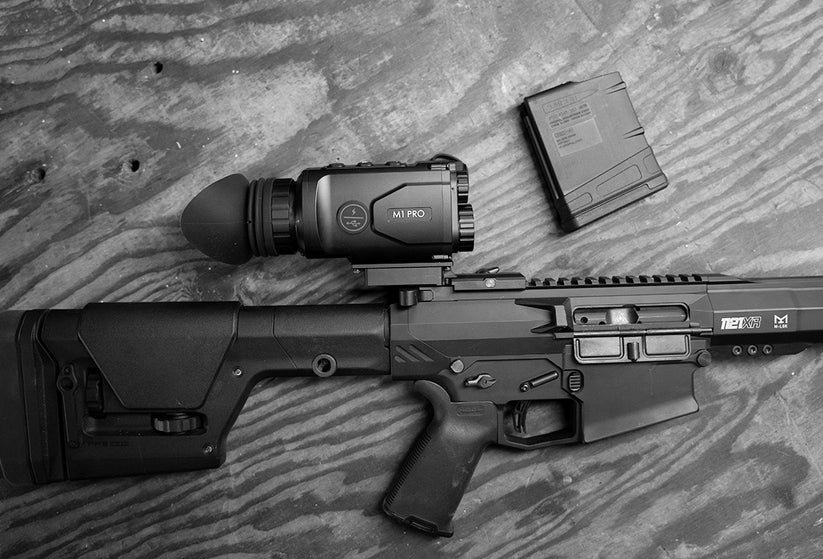

Rifle Mount
Versatile
Only 17oz

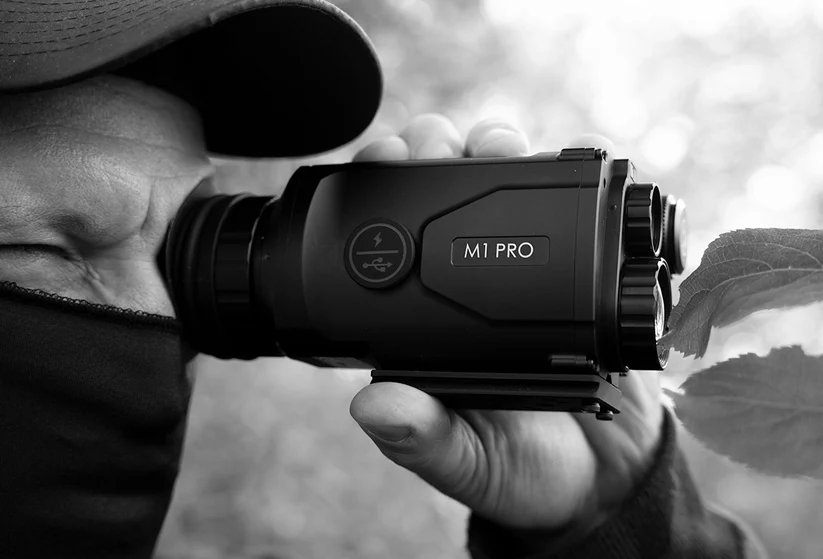

Hand Hold

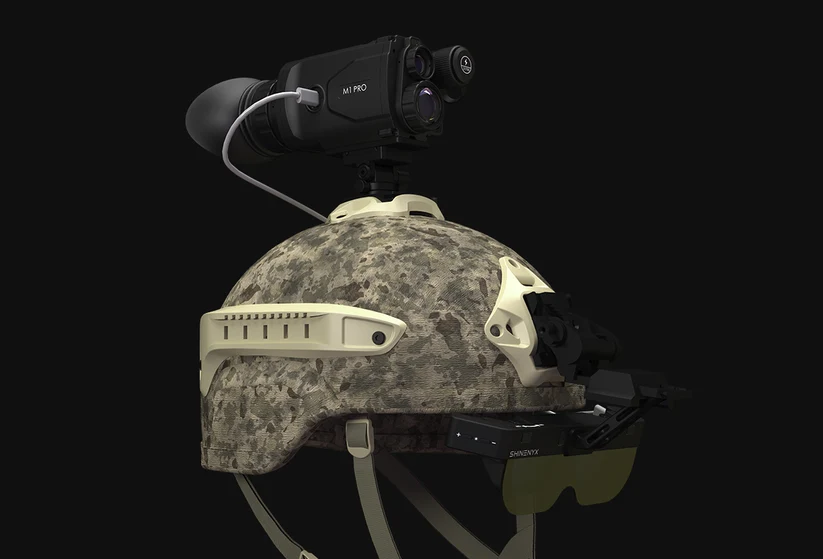

Versatile
Only 18oz

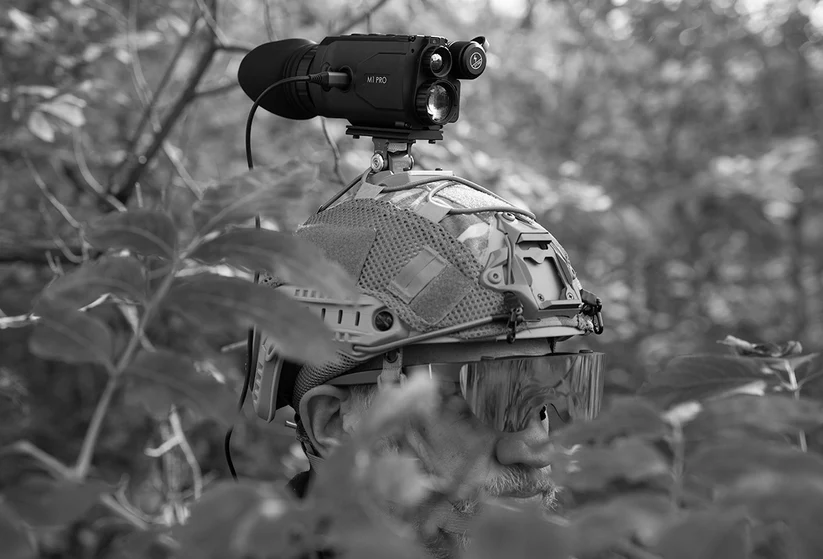

Helmet Mount

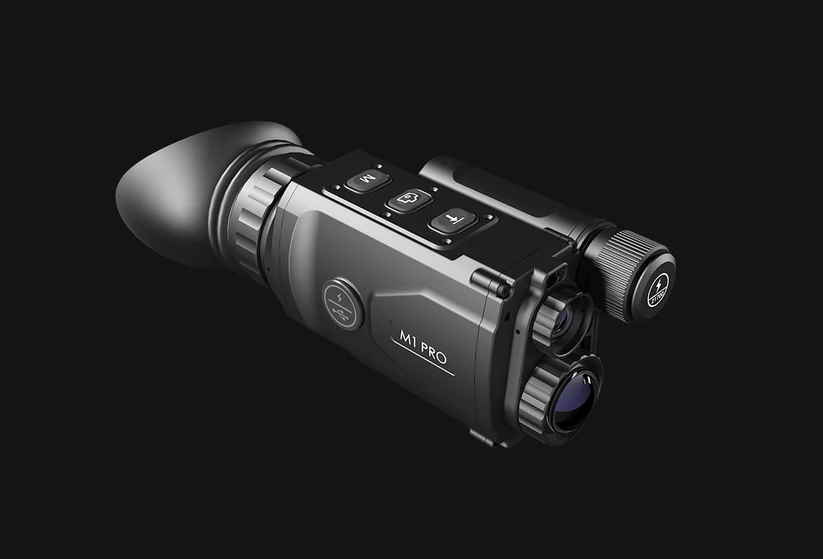

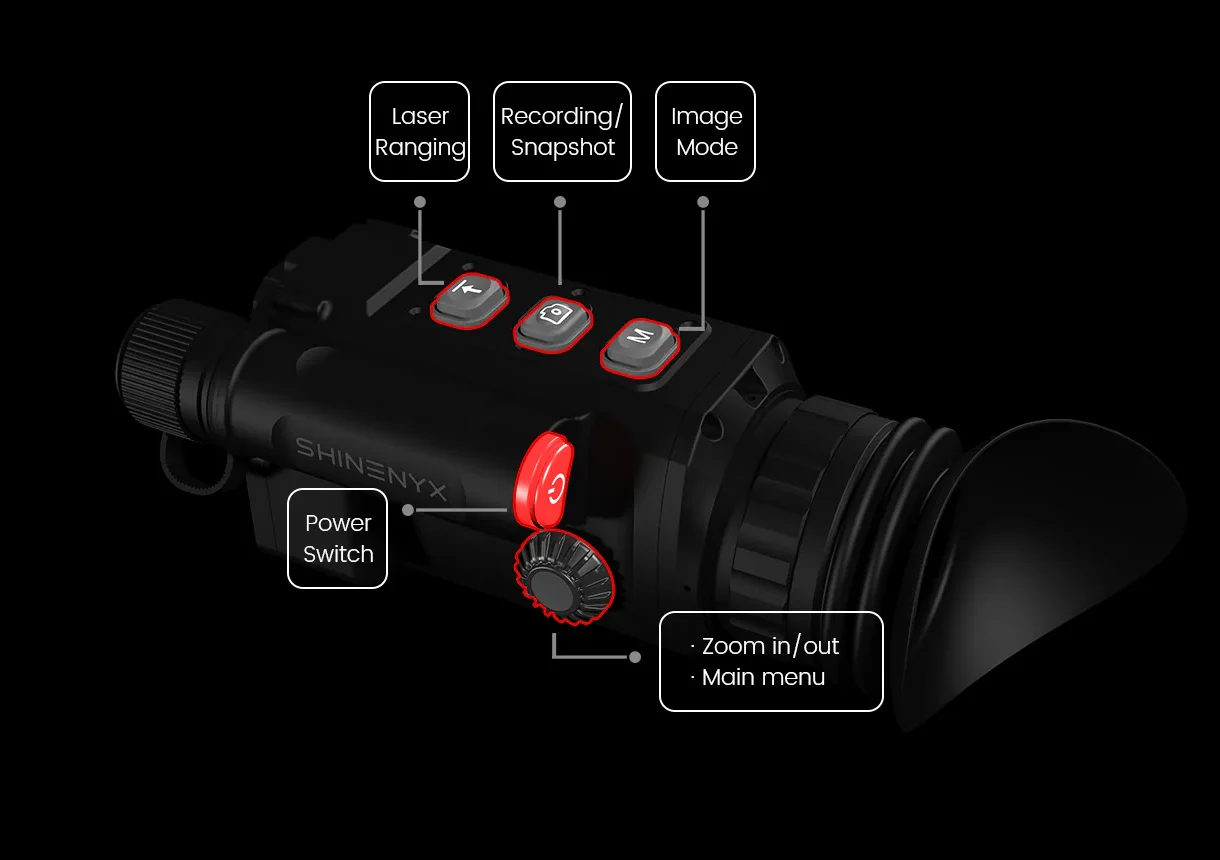

Simple to use
3 Shortcut Buttons + Knob
Use physical shortcuts and attitude
control for the most-used features
name
The Problem with Over-Engineered Menus >>
High-tech optics often bury essential functions under layers of cryptic
settings. Adjusting under stress is nearly impossible — especially with gloves or in the
dark.
settings. Adjusting under stress is nearly impossible — especially with gloves or in the
dark.
Shinenyx advantage >>
Use physical shortcuts and attitude control for the most-used
features:
features:
- Roll left: activate laser rangefinder
- Roll right: change reticle color
- No need to remove your hand from the rifle or navigate deep menus
Simple When You Need It
Menus are shallow (one or two layers), intuitive, and designed to
feel as familiar as a smartphone — so you stay focused on the hunt, not the hardware.
feel as familiar as a smartphone — so you stay focused on the hunt, not the hardware.
