G 1A Thermal + Nightvision Fusion Monocular / Goggle
G 1A Thermal + Nightvision Fusion Monocular / Goggle
- shipping from Dallas, TX
Couldn't load pickup availability

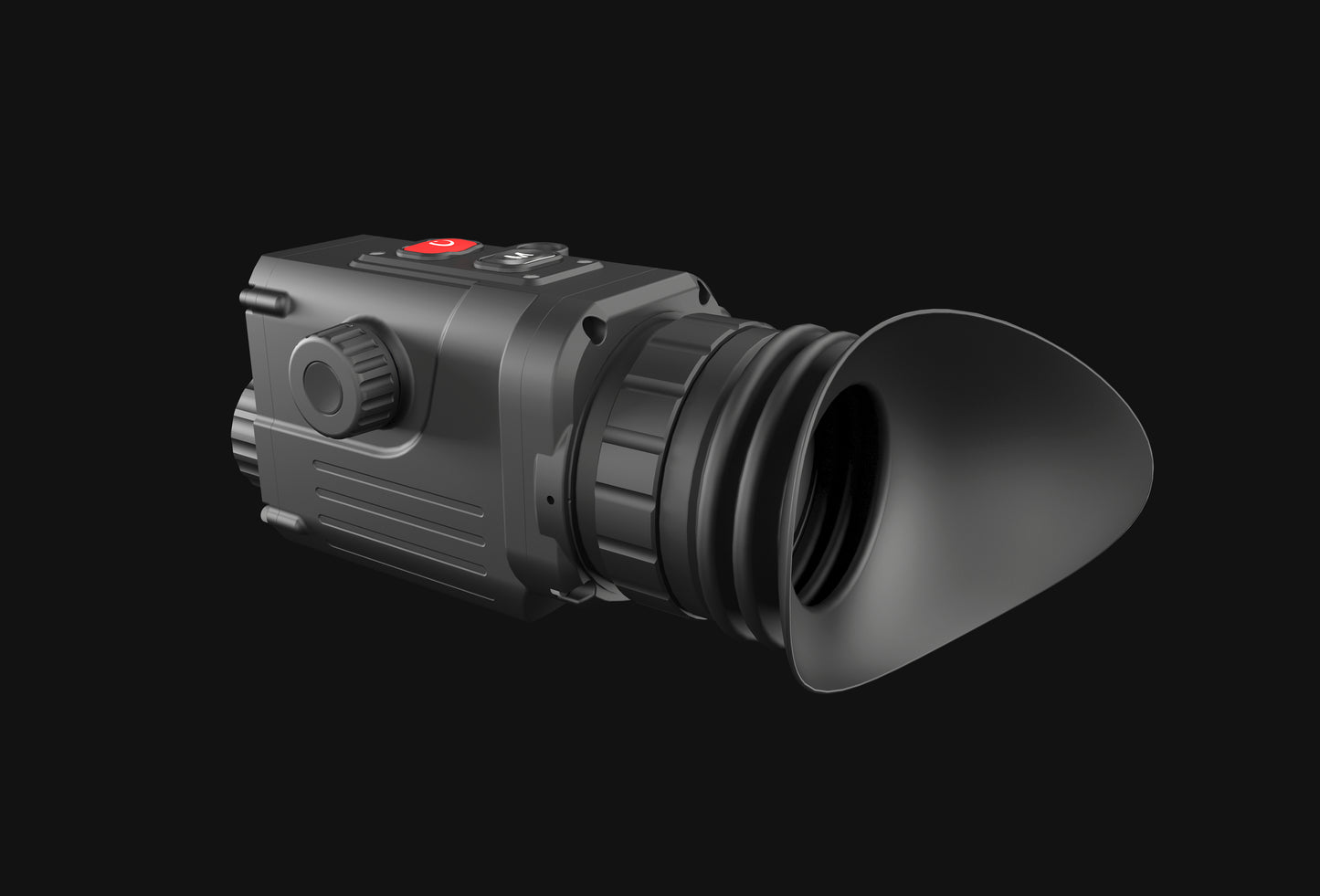

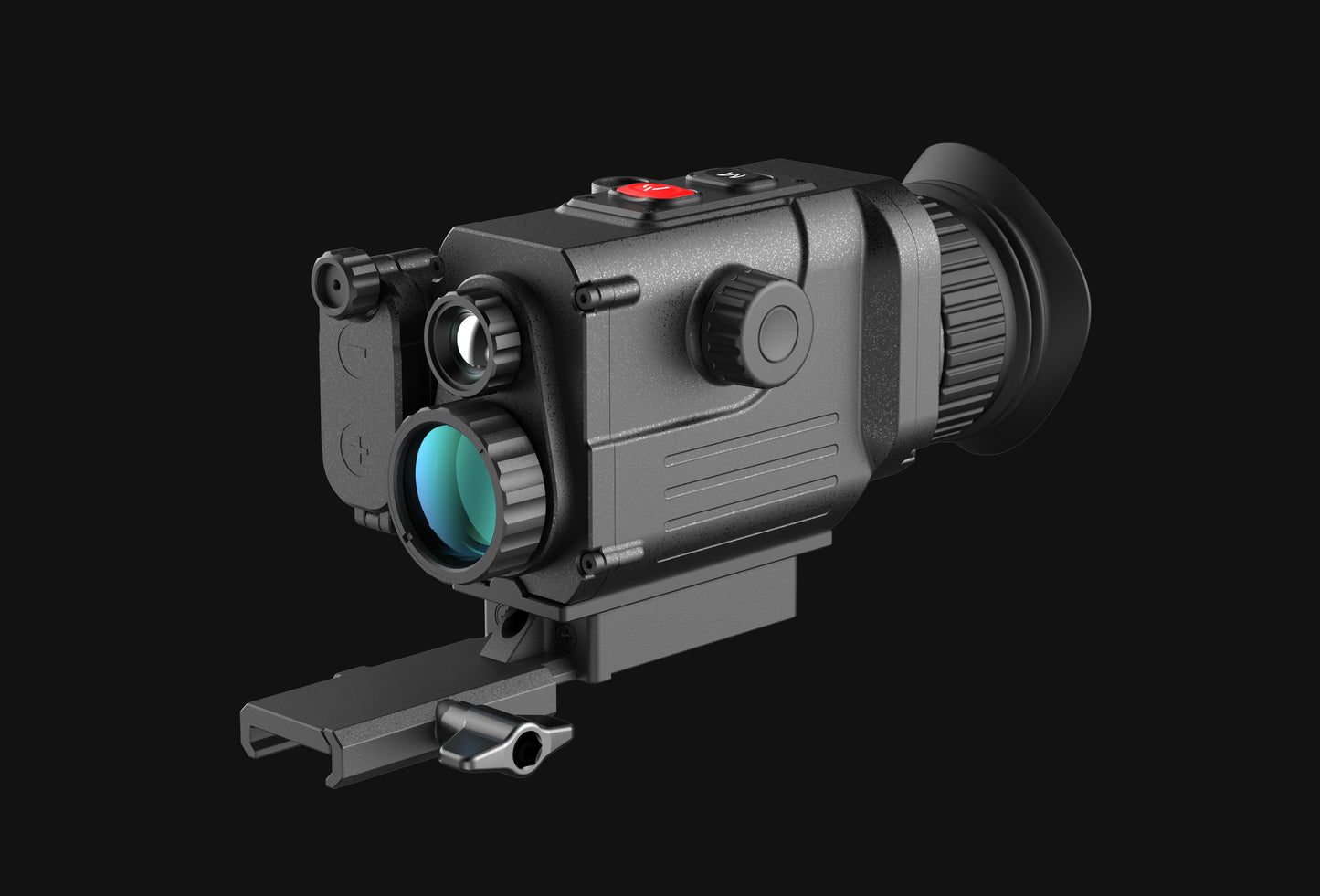

THE G1A MONOCULAR / GOGGLE

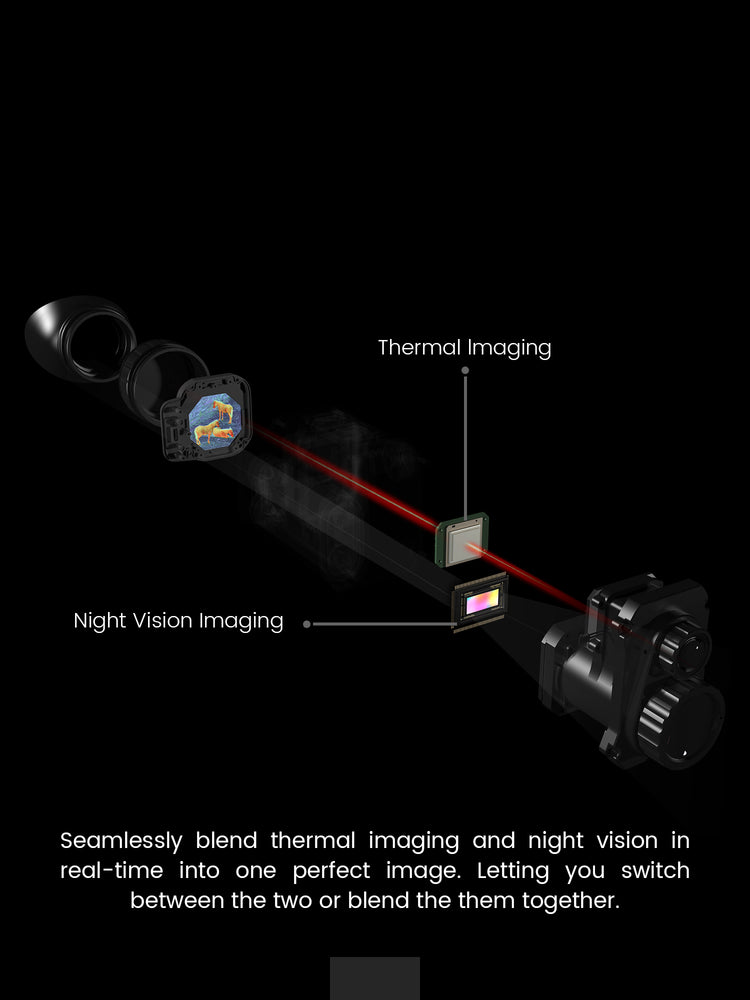

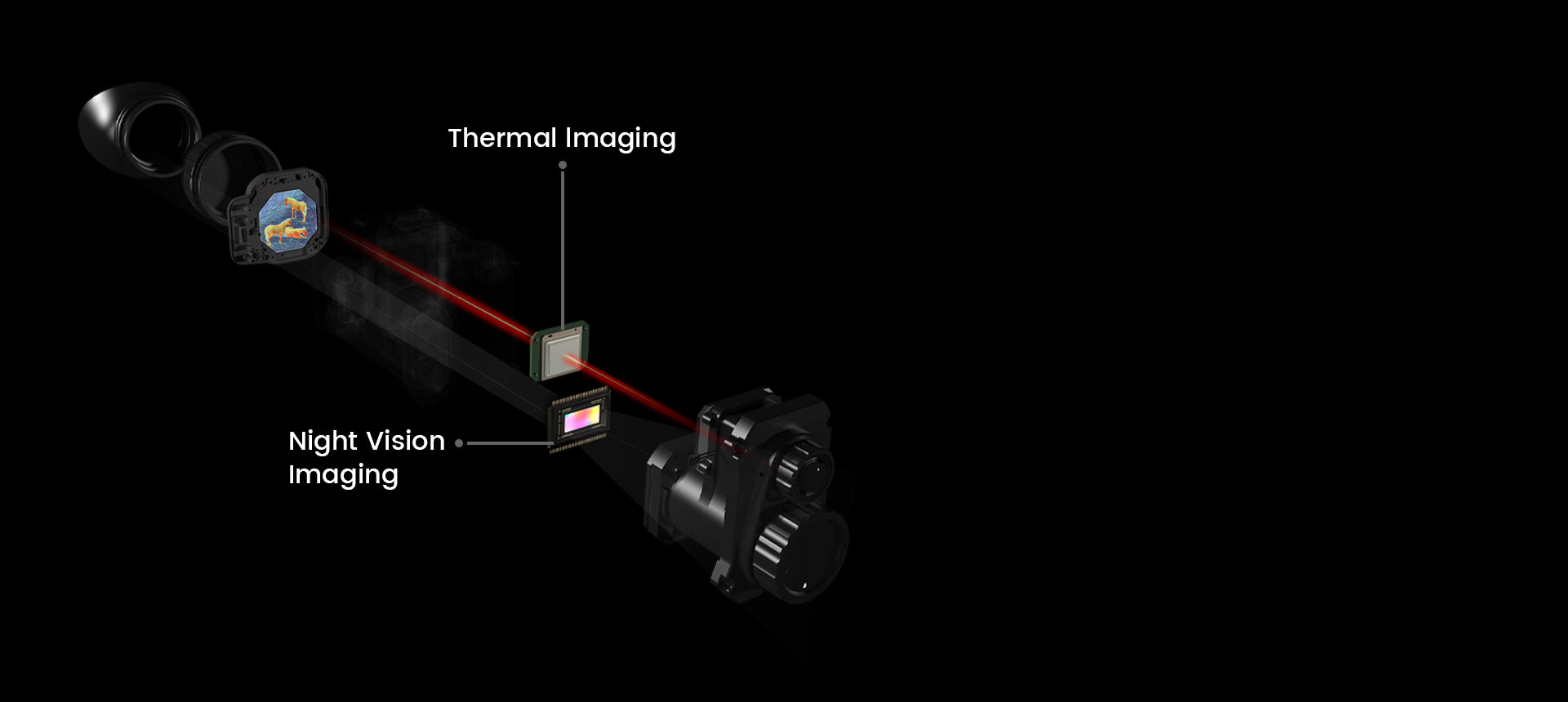

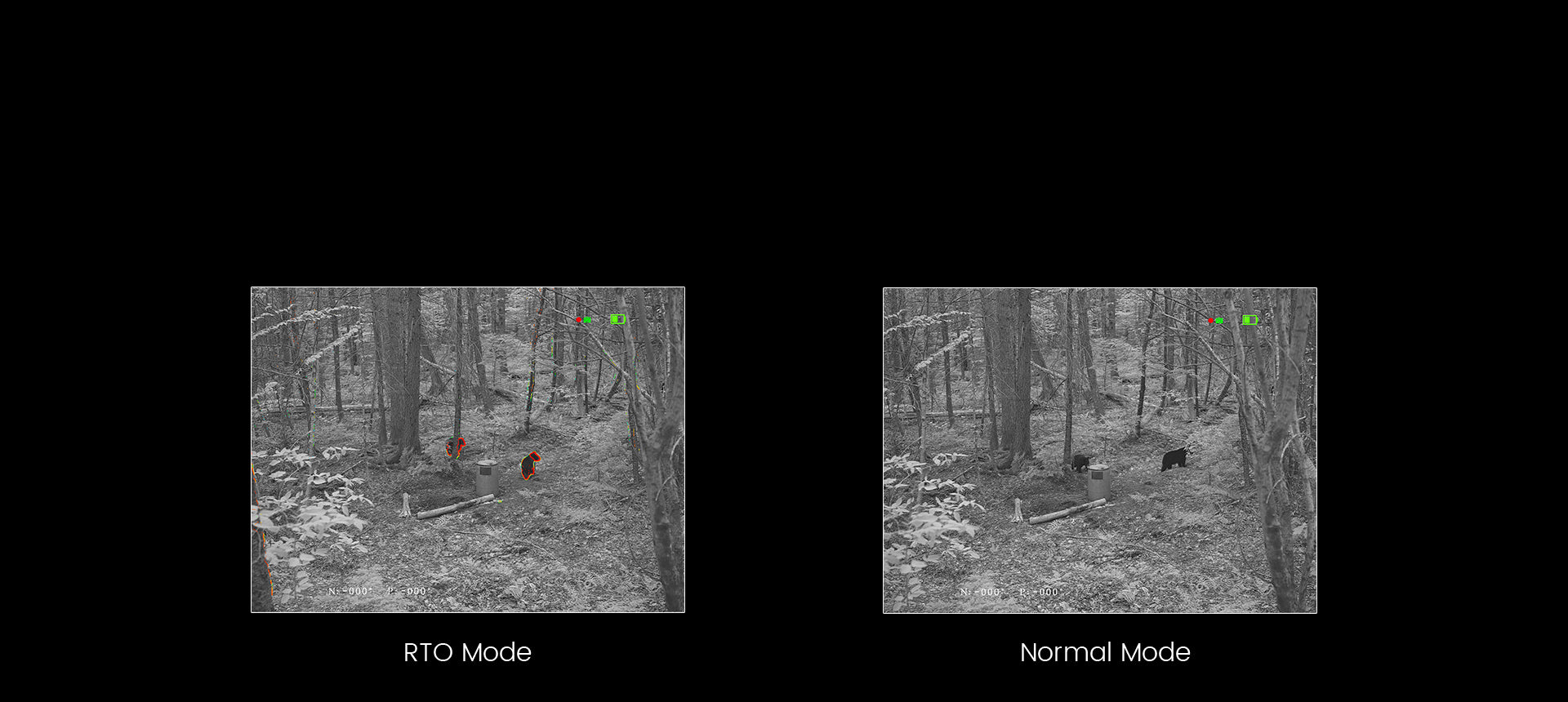

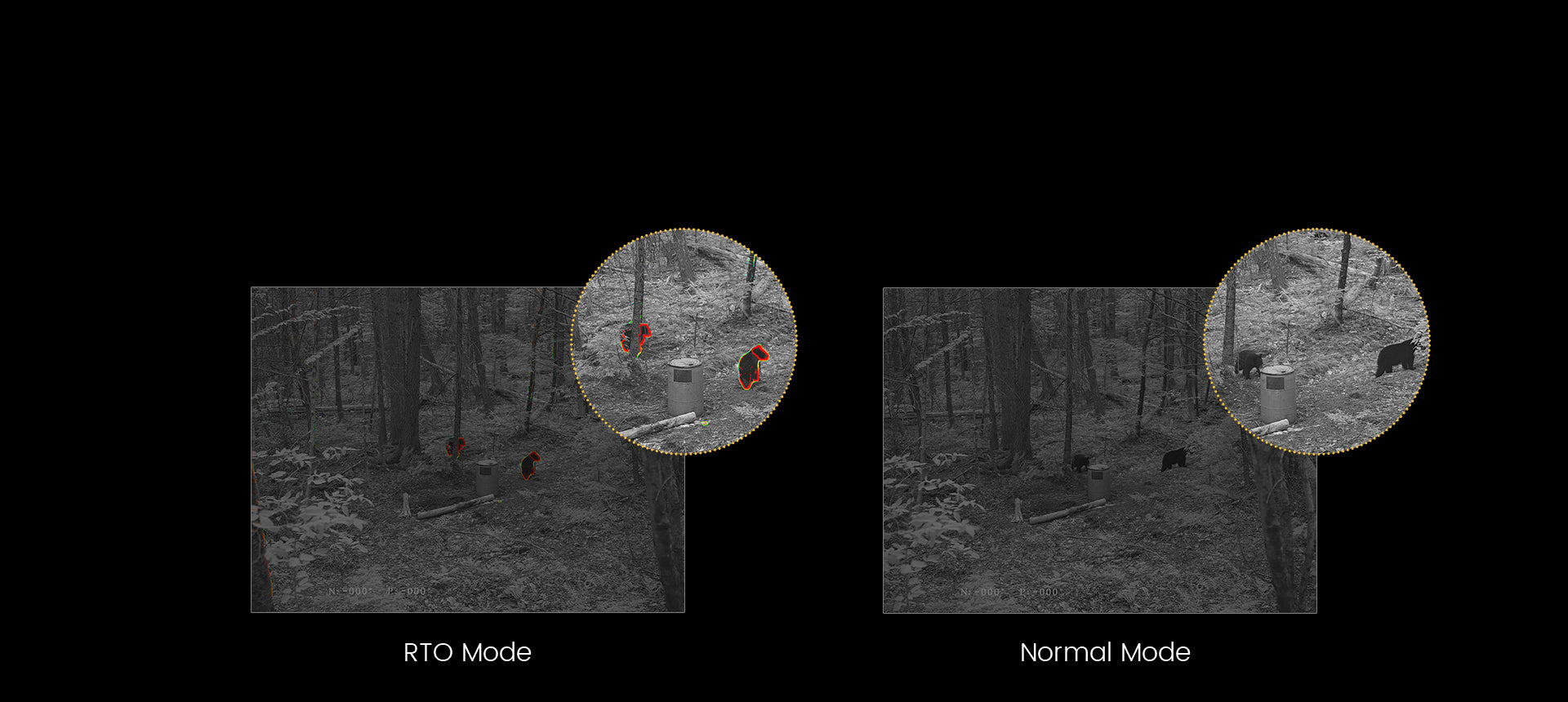

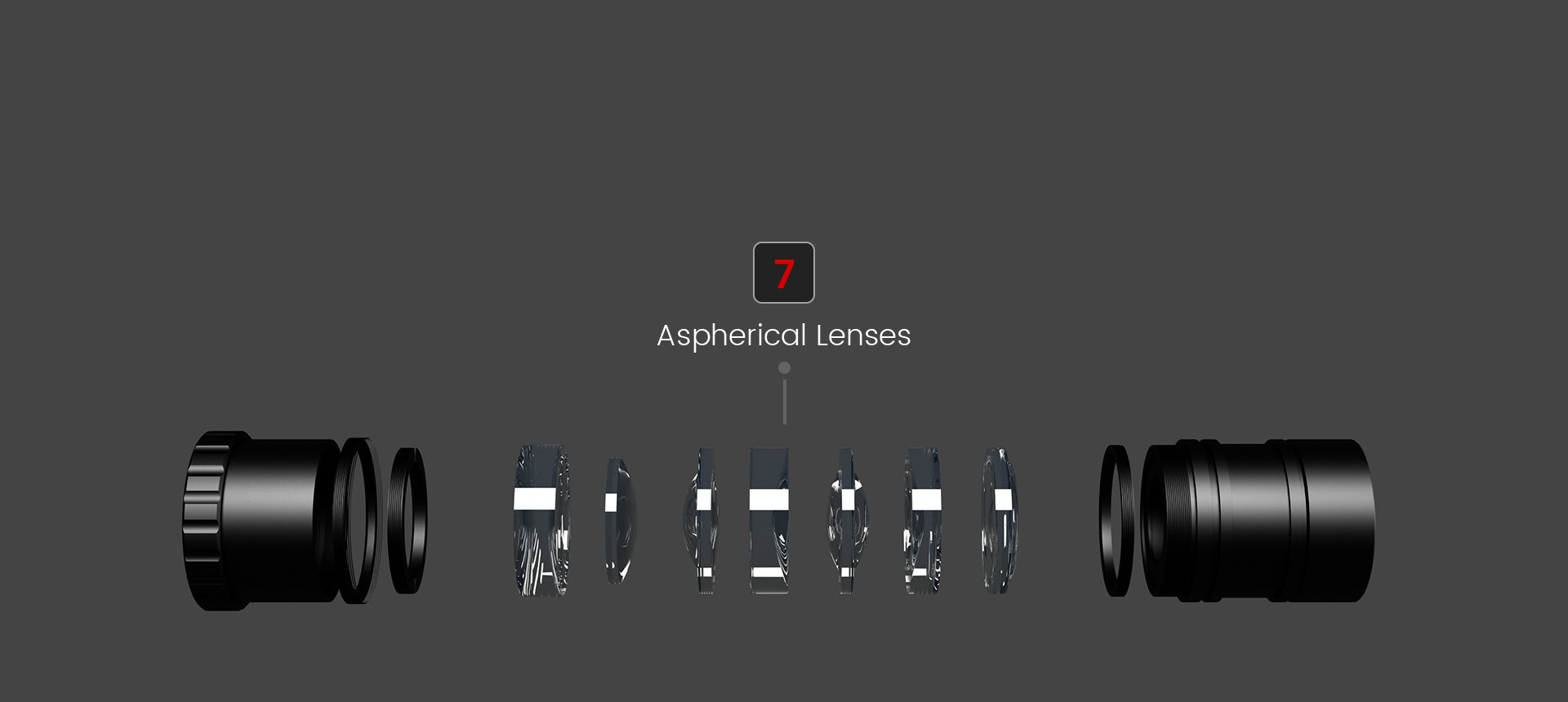

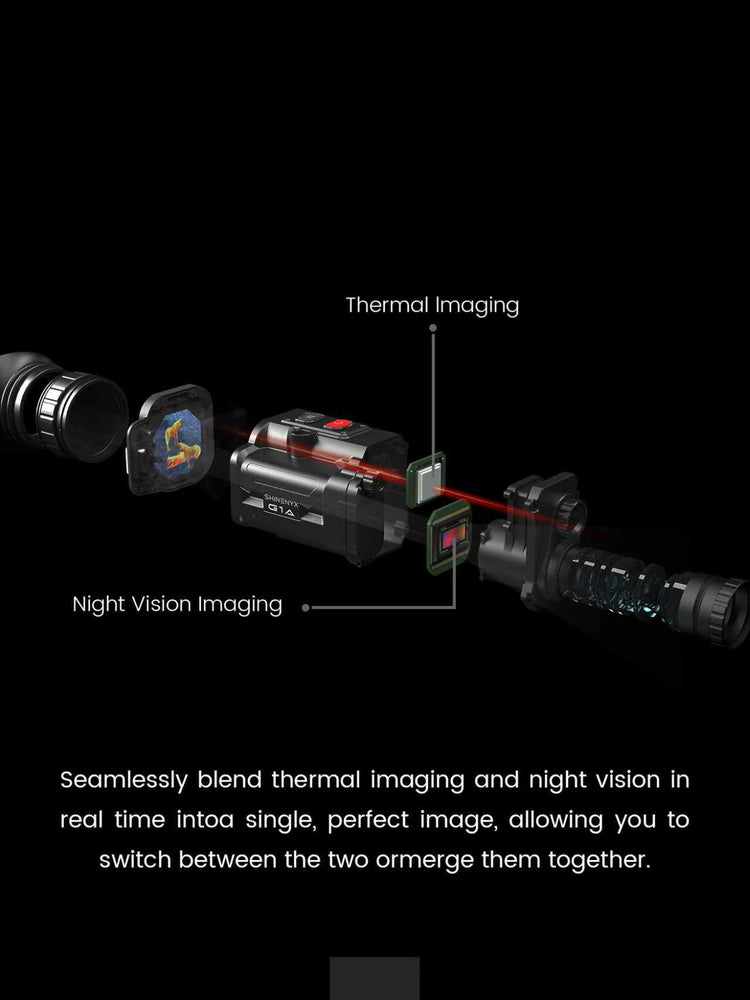

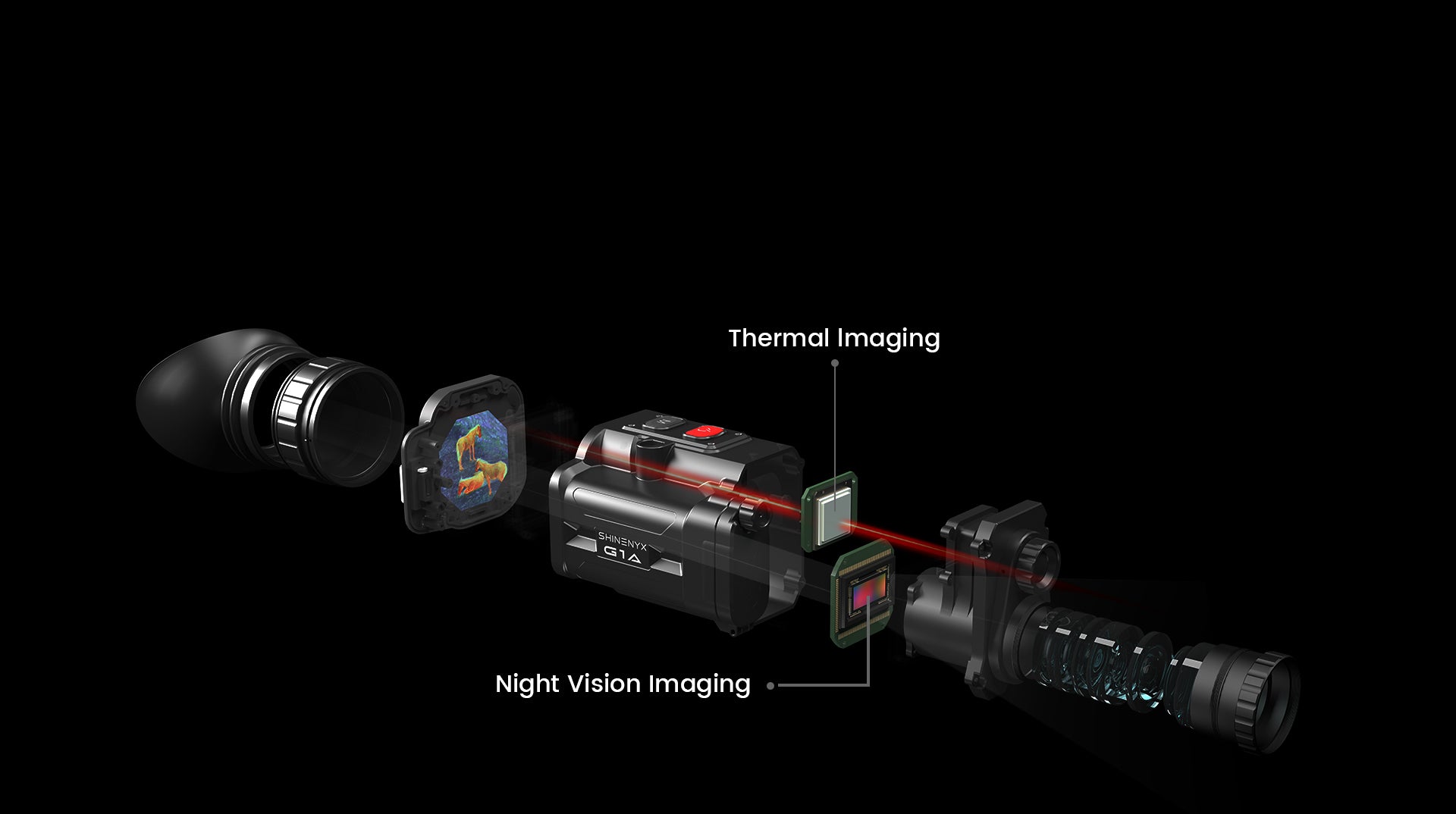

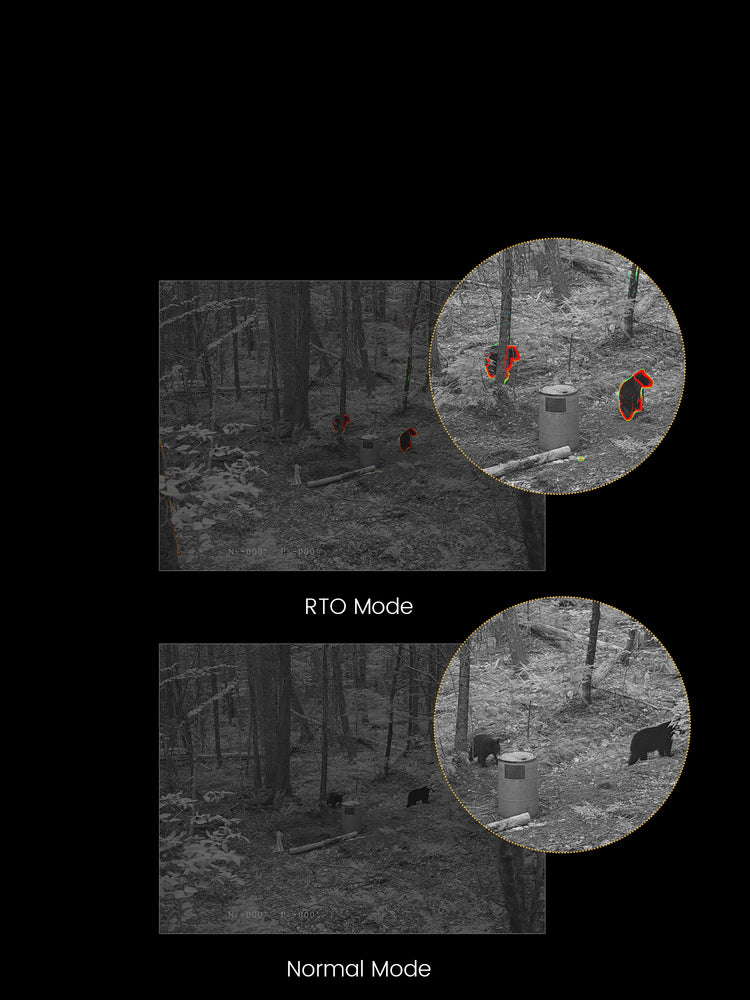

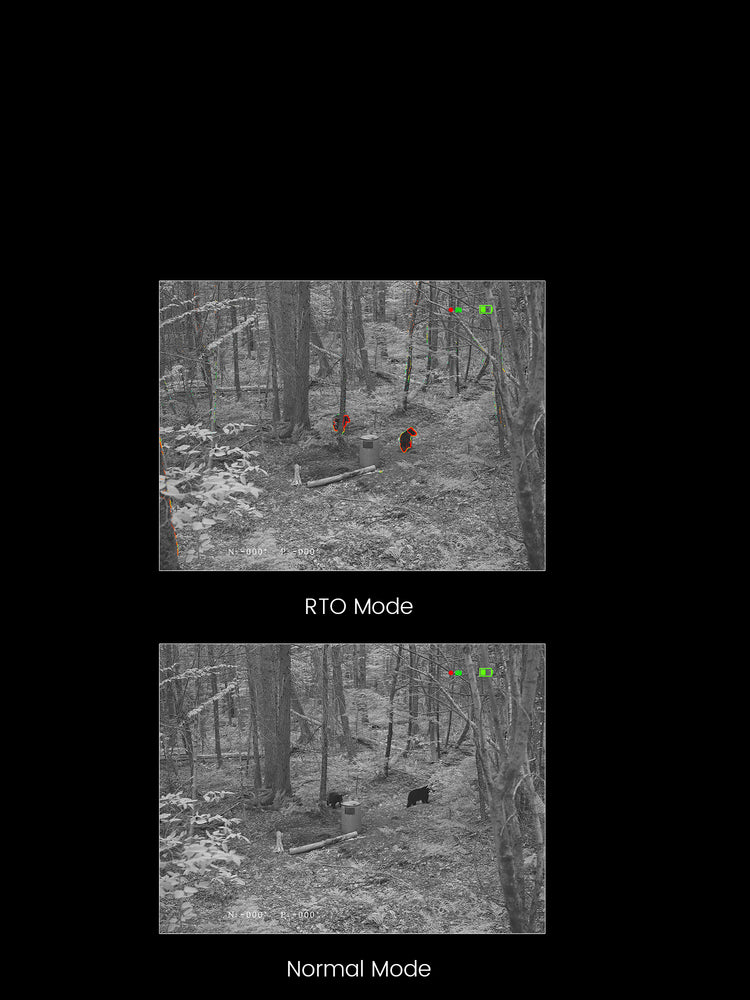

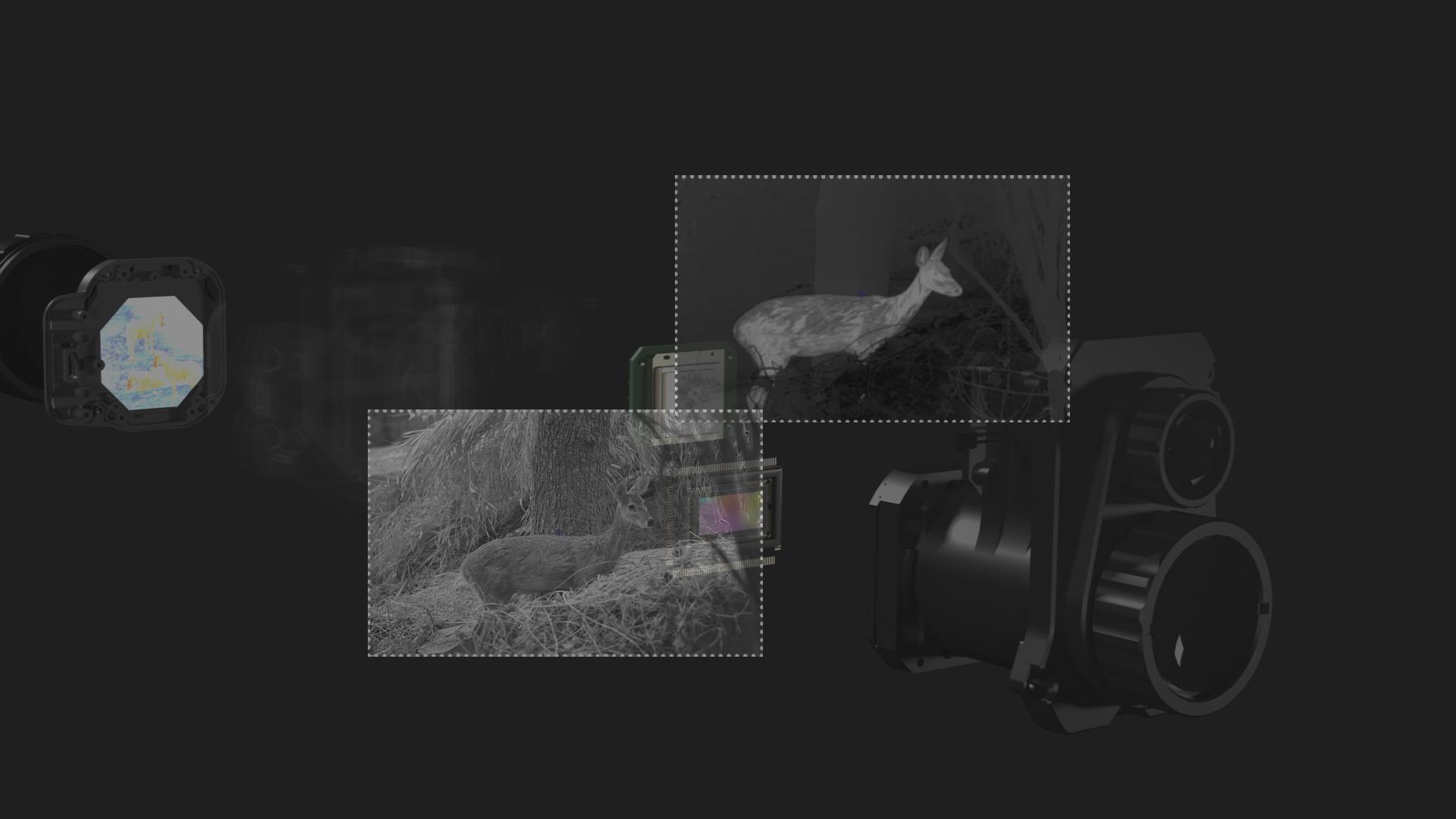

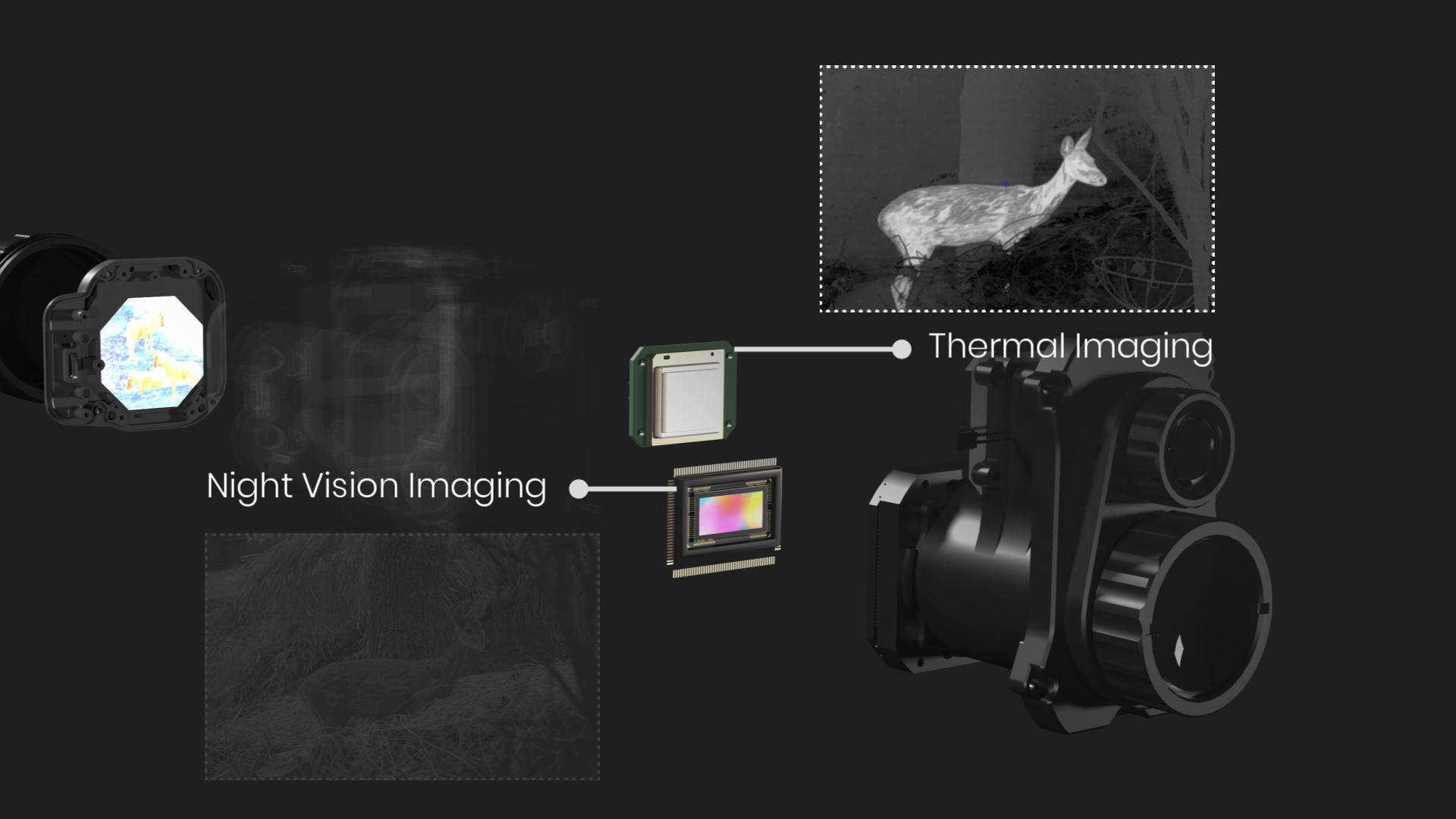

The Shinenyx G1A Thermal + Night Vision Fusion Monocular / Goggle is a cutting-edge tool for professionals seeking superior vision and detection in low light environments. Its real-time Fused Image Technology (F.I.T.) seamlessly integrates thermal and night vision. Rapid Target Outline (RTO) function simplifies the user’s ability to lock onto targets with speed. 50Hz high frame rate and low lantency design eliminates lag and ensures fluid movement tracking. Proprietary Shinenyx E2E 7-Aspherical-lenses providing distortion-free, edge-to-edge clarity with wide 60.4 degree field of view. 2.1 inch High-resolution LCD and pancake eyepiece bring bright, clear and immersive visuals. The G1A delivers unparalleled clarity and situational awareness in moonless night without artifical illumination. Compact and lightweight at just 16.76 ounces, it can also be used as fast aiming scope or goggle. Designed for tactical operations, search and rescue, and security, the G1A is both durable and user-friendly, featuring an intuitive interface and long-lasting battery life.











































Specification
G1 A | ||||
---|---|---|---|---|
Dual-camera | Night Vision | Thermal | Fusion | |
Image Sensor | Resolution | 1600×1200 | 384×288 | 1600×1200 |

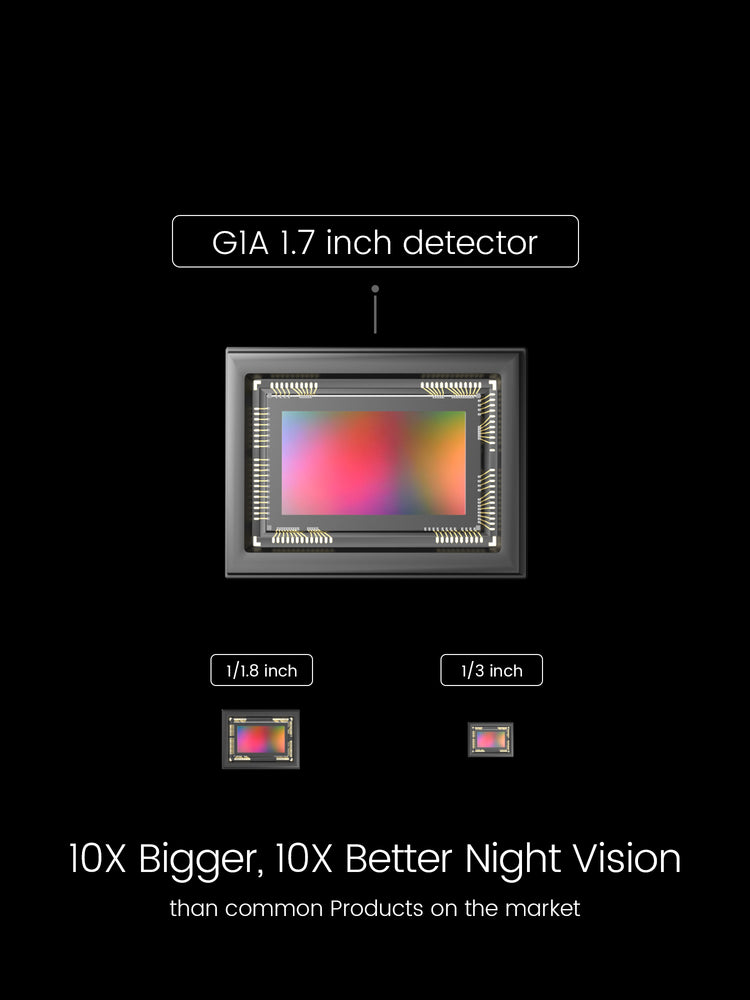

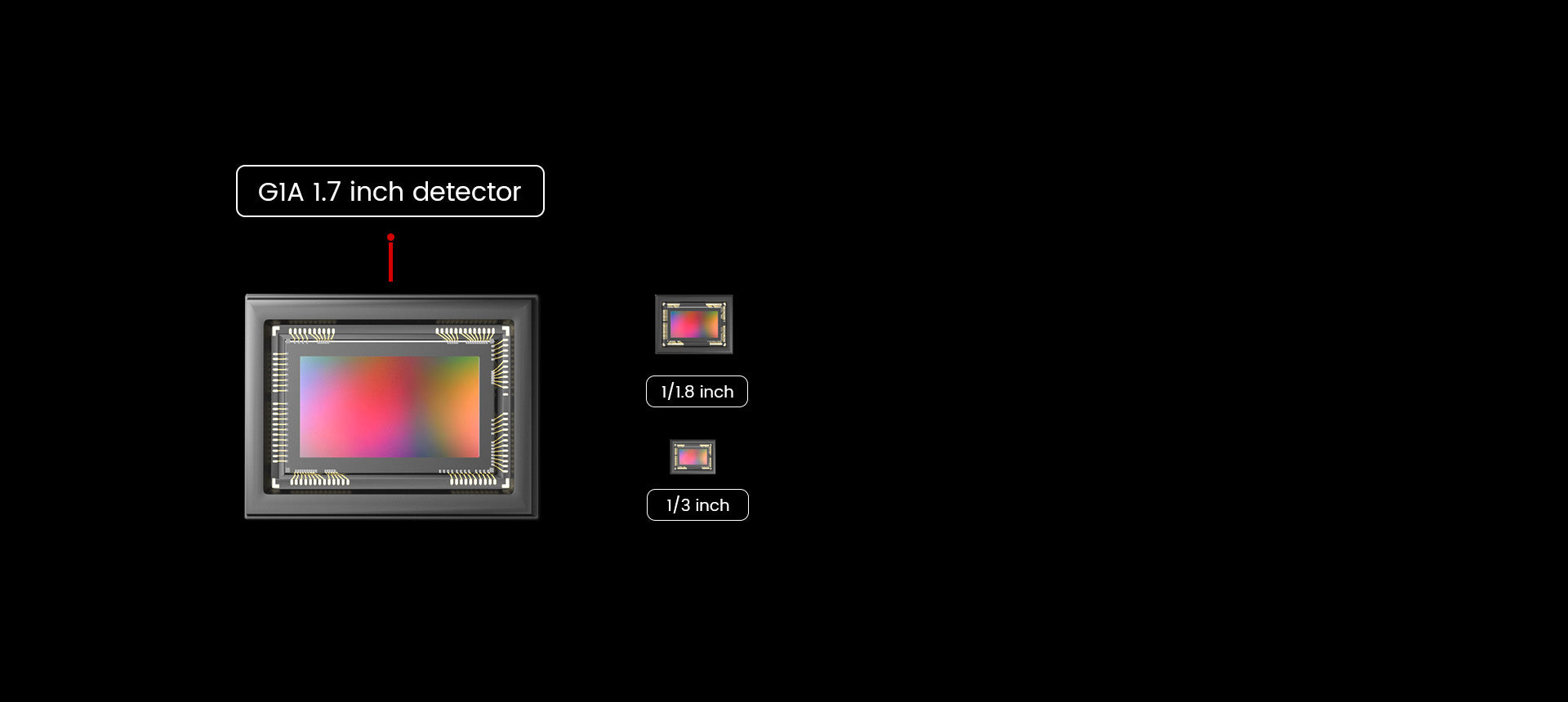

Detector Size | 1.7 inch | 0.36 inch | ||
Imaging Mode | Black&White | White Hot Thermal | Colorful Fusion/Colorful Negative Fusion | |
Recognition Enhancement | RTO(Outline Heat Target) | |||
Frame Rate | 50Hz | |||
Objective Lens | Focal Length | 16.5mm | 5.45mm | |
Field of View | 60.4°x47.1° | 45.8°x33.2° | 60.4°x47.1° | |
Focus Method | Manual Rotation | |||

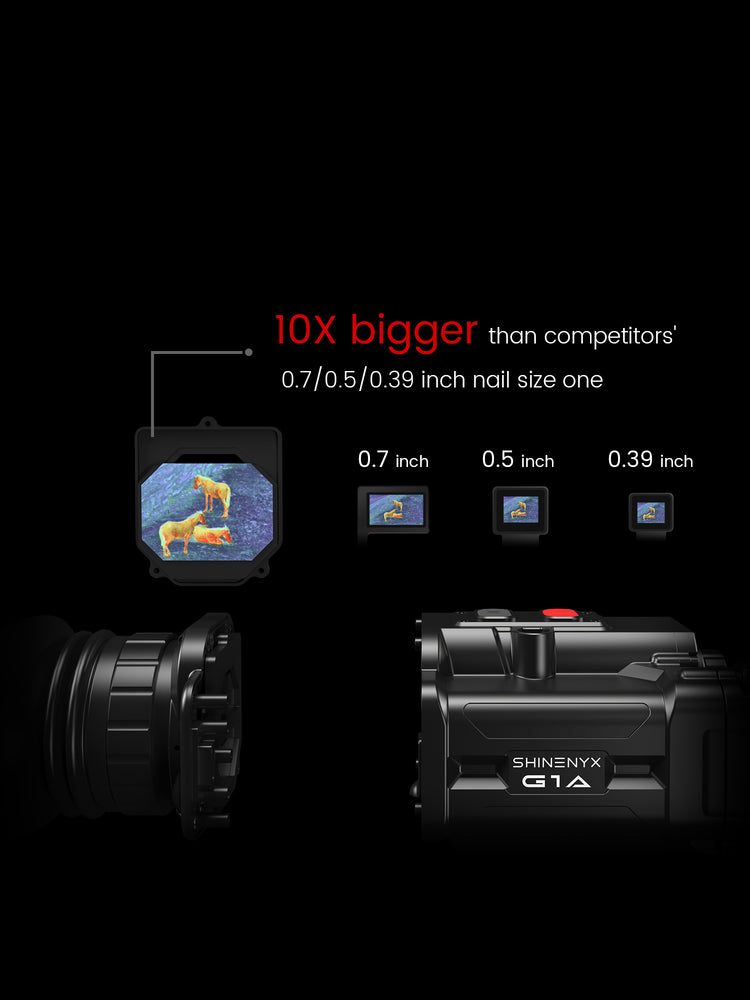

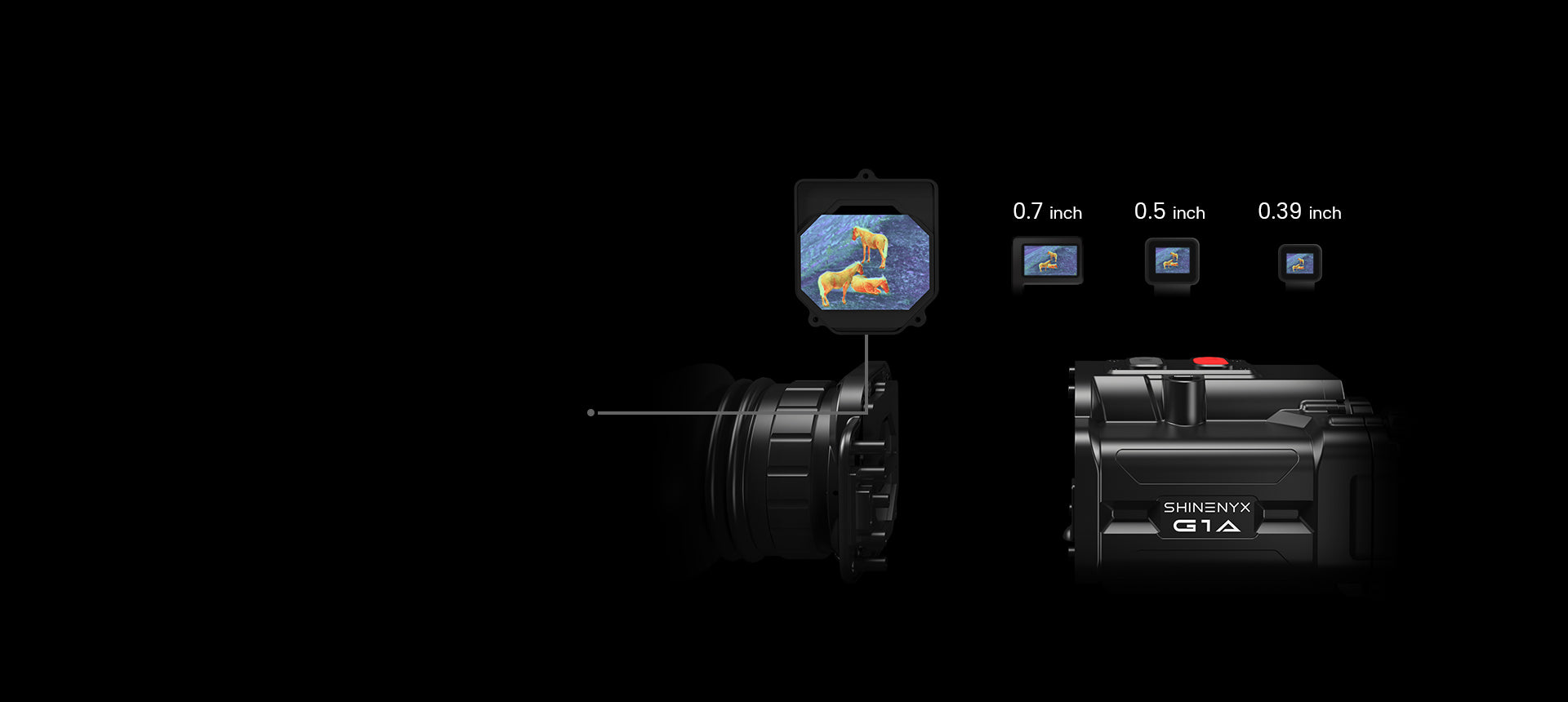

Viewfinder | 2.1inch, 1600×1200 LCD Screen | |||
Detection Range | Hog Target | Up to 150 yards | ||
Other Features | Electronic Compass | Available | ||
Interface | USB-C | Power Supply/ Battery Charge/ Firmware Update | ||
Operational Characteristics | Magnification | 1x/2x/4x | ||
Power Supply | 2x 18650 batteries/USB-C Interface | |||
Battery Life | Up to 6 hours | |||
Ingress Protection | IPX5 | |||
Operating Temperature | -20°F~+110°F | |||
Weight | As Monocular 17ounces, As Goggle 18 ounces,As Scope 21ounces | |||
Dimension | With Eyepiece Cover:177 x 74 x 68(mm) | |||
Recoil Resistance | Maintain Zero After 7.62 x 51 NATO 1000 Shoots |
G1 A | |
---|---|
Dual-camera | Night Vision+Thermal |
Resolution | 1600×1200/384×288 |
Detector Size | 1.7 inch/0.36 inch |
Imaging Mode | White Hot Thermal /Black&White Night Vision/Colorful Fusion/Colorful Negative Fusion |
Recognition Enhancement | RTO(Outline Heat Target) |
Frame Rate | 50Hz |
Focal Length | 16.5mm/5.45mm |
Field of View | 60.4°x47.1°/45.8°x33.2° |
Focus Method | Manual Rotation |
Viewfinder | 2.1inch, 1600×1200 LCD Screen |
Detection Range(Hog Target) | Up to 150 yards |
Electronic Compass | Available |
Interface | USB-C(Power Supply/ Battery Charge/ Firmware Update) |
Magnification | 1x/2x/4x |
Power Supply | 2x 18650 Batteries/USB-C Interface |
Battery Life | Up to 6 hours |
Ingress Protection | IPX5 |
Operating Temperature | -20°F~+110°F |
Weight | As Monocular 17ounces, As Goggle 18 ounces,As Scope 21ounces |
Dimension | With Eyepiece Cover:177 x 74 x 68(mm) |
Recoil Resistance | Maintain Zero After 7.62 x 51 NATO 1000 Shoots |
