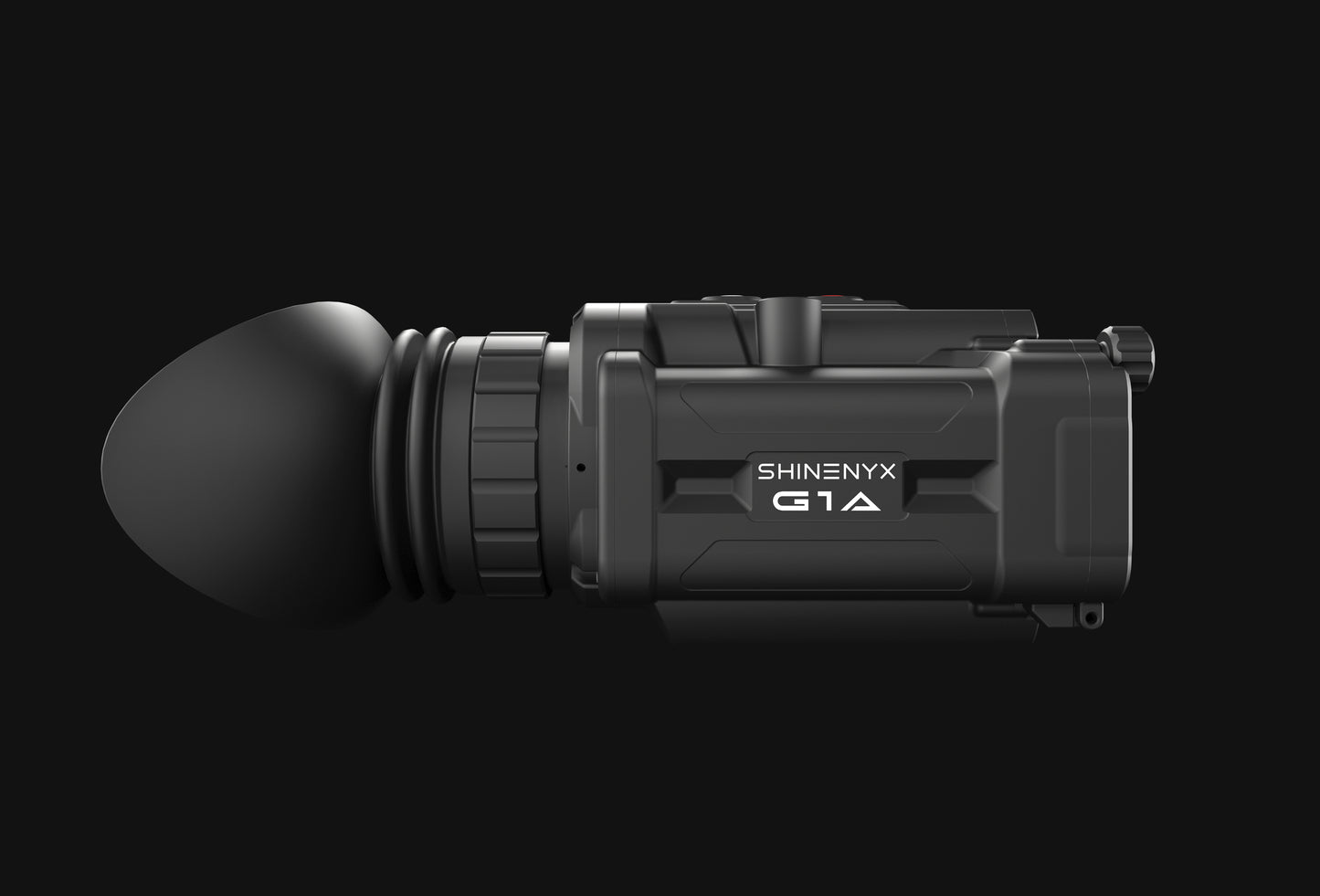

G 1A Thermal + Nightvision Fusion Monocular
G 1A Thermal + Nightvision Fusion Monocular
Couldn't load pickup availability
Experience unmatched clarity and control with the Shinenyx G1A Thermal + Night Vision Fusion Monocular—the ultimate tool for those who demand the best in every environment. This revolutionary fusion of thermal imaging and digital night vision offers unparalleled situational awareness. Proprietary optics system delivering wide 60.4-degree filed of view,crystal-clear, edge-to-edge visuals .
View full details
THE G1A MONOCULAR
The Shinenyx G1A Thermal + Night Vision Fusion Monocular is a cutting-edge tool for professionals seeking superior vision and detection in low light environments. Its real-time Fused Image Technology (F.I.T.) seamlessly integrates thermal and night vision. Rapid Target Outline (RTO) function simplifies the user’s ability to lock onto targets with speed. 50Hz high frame rate and low lantency design eliminates lag and ensures fluid movement tracking. Proprietary Shinenyx E2E 7-Aspherical-lenses providing distortion-free, edge-to-edge clarity with wide 60.4 degree field of view. 2.1 inch High-resolution LCD and pancake eyepiece bring bright, clear and immersive visuals. The G1A delivers unparalleled clarity and situational awareness in moonless night without artifical illumination. Compact and lightweight at just 16.76 ounces, it can also be used as fast aiming scope or goggle. Designed for tactical operations, search and rescue, and security, the G1A is both durable and user-friendly, featuring an intuitive interface and long-lasting battery life.
Specification
| Item | Specification | |||
|---|---|---|---|---|
| Product Name | G 1A | |||
| Dual-Camera | Night vision | Thermal | Fusion | |
| Objective lens | Focus Length | 16.5mm | 5.45mm | |
| Field of View | 60.4°x 47.1° | 45.8°x 33.2° | 60.4°x 47.1° | |
| image Sensor | Size | 1.7 inch | 0.36 inch | |
| Resolution | 1600x1200 | 384x288 | 1600x1200 | |
| Video Color | Black&white | Black&white | False Color | |
| Frame Rate | 50Hz | |||
| Display Screen | 2.1 inch ,1600x1200 | |||
| Comprehensive Performance | Magnification Factor | 1x、2x、4x | ||
| Detection distance (Hog size Target) | up to 150 yards | |||
| Electronic Compass | Available | |||
| Interface | Type C for charging and program upgrade | |||
| Power supply mode | 2x18650 batteries/USB- C Interface | |||
| Battery Life | 6h | |||
| Ingress Protectior | IPX5 | |||
| Operating Temperature | -20℉~+110℉ | |||
| Weight | As monocular 17ounces, As goggle 18 ounces, As scope 21ounces | |||
| Dimension | with eyepiece cover : 177x74 x68(mm) | |||
| recoil resistance | maitain zero after 7.62X51 NATO 1000 shoots | |||
